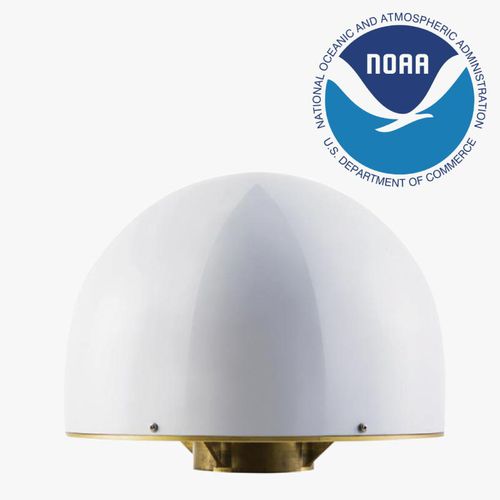

GNSS antenna AS-ANT3B-CHO-L1256-SMATNC-00

GPSGLONASSGALILEO

Calibrated by NGS Survey Quadband (L1/L2/L5/L6) 3D Choke Ring GNSS antenna. Ideal for base station installations, but also for fixed installations supporting L-band. Antenna element Supported positioning signal bands: GPS: L1, L2, L5 GLONASS: G1, G2, G3 BeiDou: B1, B2, B3 Galileo: E1, E5, E6 QZSS: L1, L2, L5, L6 Navic: L5 L-band: L6 SBAS: WAAS, EGNOS, MSAS and GAGAN Polarization: RHCP Peak gain: 7dBi Axial Ratio @ zenith: <3dB Azimuth Coverage: 360 degrees Impedance: 50 ohm Phase center error: ±1mm Calibration file available Electrical Supply voltage: 3-12V Typical supply current @ 3V: 60mA Average LNA gain: 40dB Maximum Noise Figure: 1.5dB Maximum VSWR: 1.5 Mechanical Maximum length: 380mm Weight: 10kg Mounting style: 5/8” x 11TPI thread Connector: TNC female Cable length: Includes 1.5 meter cable terminated in SMA male Includes 2.5 meter cable terminated in TNC male Environmental Operating Temperature: -40 to +85°C Storage Temperature: -40 to +85°C IP Rating: IP67 (excluding air vent in screw hole, which can be sealed when installed) RoHS: Yes
