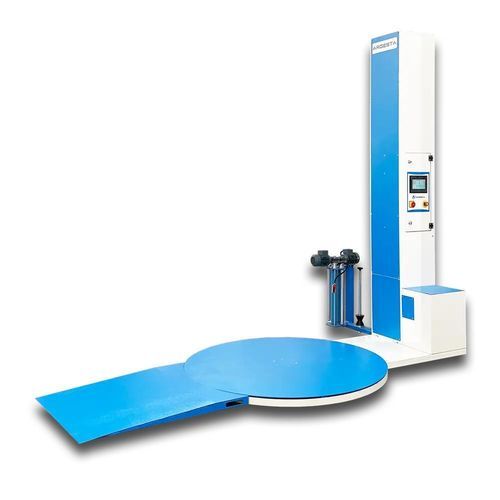

Turntable stretch wrapping machine

automaticmanualdistribution

General description
Twin-motor pre-stretch pallet wrapper designed for secure, controlled wrapping of palletised loads of various heights and types. The twin-motor pre-stretch system improves film efficiency, standardises wrapping quality and increases load protection during storage and transport.

Applications
Used in logistics, warehousing, food, chemical, manufacturing and distribution to securely wrap palletised goods. Suitable for boxed products, packaged goods, bagged loads and production lines with regular pallet outputs.

Why choose this model?
This model is suited for companies seeking more controlled film handling and consistent wrapping compared with mechanical pre-stretch systems. The twin-motor pre-stretch delivers more stable wraps across different pallet heights and product types, helping to reduce film consumption and achieve standardised results.

Advantages

• Optimises film usage with a twin-motor pre-stretch system.
• Provides more uniform and standardised wrapping to improve pallet stability.
• Enhances product safety during storage and transport.
• Electronic speed control with soft start/stop for controlled operation.
• Photocell-controlled height adjustment to adapt to different load types.
• Extra wrapping at top and bottom areas for increased protection.
• 4 wrap programs and manual mode for operational flexibility.
• Saves time and labor, improving operational efficiency.

Key features

• Electronic speed control with soft start/stop.
• Maximum wrapping height: 270 cm.
• Twin-motor pre-stretch allows film elongation up to 5x.
• 4 wrapping programs.
• 7″ touch screen.
• Loading ramp for pallet truck.
• Extra top and bottom wrapping capability.
• Turntable diameter: 165 cm.
• Photocell-controlled height adjustment.
• Automatic stop when programmed wrap is completed.
• Adjustable wrap frequency and manual operation.
• Custom production option for different dimensions (project-based engineering).

Twin-motor pre-stretch system
The twin-motor pre-stretch system provides controlled tensioning of the film before wrapping, improving film efficiency and wrapping quality while reducing unnecessary film consumption.

Technical specifications

• Turntable diameter: 165 cm
• Maximum operating height: 270 cm
• Load capacity: 2000 kg
• Power: 1.7 kW
• Supply voltage: 220 V
• Machine weight: 480 kg
• Machine dimensions: 185 cm x 246 cm
• Ramp size: 104 cm
• Pre-stretch: Twin-motor, film elongation up to 5x
• Wrapping programs: 4 programs + manual
• User interface: 7″ touch screen
