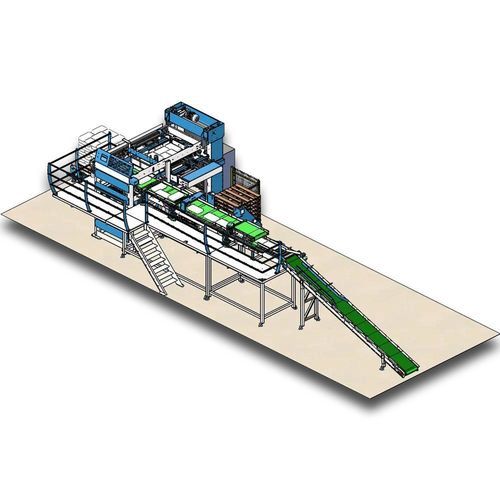

Layer palletizer

bagfor cardboard boxesfor boxes

General description
The Palletizer is a high-speed palletizing system designed to place bags, boxes, cartons and similar products onto pallets at the end of production lines quickly, accurately and in a standardized pattern. It standardizes end-of-line pallet layouts, reduces manual labor and improves pre-shipment staging efficiency. The system can be engineered for different product types, layer patterns and line configurations, making it suitable for operations with high palletizing throughput requirements.

Applications
Used for palletizing bagged, boxed and cartonized products across sectors such as feed, flour, pulses, fertilizer, building chemicals, food & beverage and general manufacturing. Particularly effective on high-capacity production lines requiring rapid and consistent pallet loading.

Key advantages

• Places products onto pallets at high speed with consistent alignment.
• Standardizes end-of-line palletizing processes.
• Reduces labor requirements compared to manual palletizing.
• Ensures continuous and controlled flow at line output.
• Maintains layer patterns to increase pallet stability.
• Improves safety and reliability of load preparation for storage and shipment.
• Can be configured for different product types and stacking patterns.
• Increases efficiency on high-capacity production lines.

Capacity and application information
Capacity: 500–2500 packages/h
Application areas: Food, feed, flour, pulses, fertilizer, building chemicals, beverage and general industry

Technical table
FEATURE - VALUE
System dimensions - 6 m x 11 m
System type - High-speed palletizing system
Layer formation - Layer formation according to product and stacking pattern
Product feeding system - Conveyor-based automatic feeding
Pallet feeding - Automatic
Control system - PLC + HMI
Output conveyor / structure - Conveyor structure adapted for pallet output
Product compatibility - Boxes, bags, cartons, drums, sacks, etc.
Pallet type - Solutions for different pallet sizes
Line speed / capacity - 500–2500 packages/h
Electrical supply - 380 V
Air pressure - 6–8 bar

Additional information
The system can be adapted on a project basis to various product types and line configurations. Technical specifications may vary depending on application and can be customized to customer requirements.

Technical specifications

• System dimensions: 6 m x 11 m
• System type: High-speed palletizer
• Layer formation: Layer formation according to product and stacking pattern
• Product feeding: Conveyor-based automatic feeding
• Pallet feeding: Automatic
• Control: PLC + HMI
• Output structure: Conveyor structure suitable for pallet output
• Compatible product types: Boxes, bags, cartons, drums, sacks, etc.
• Pallet type: Solutions for different pallet sizes
• Line speed / capacity: 500–2500 packages/h
• Electrical supply: 380 V
• Air pressure: 6–8 bar
