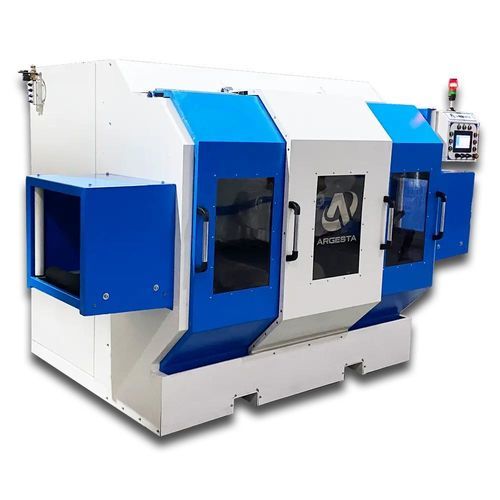

Satin finishing machine

industrialfor aluminumcontinuous

Profile Satinizing Machine Profil Satinaj Makinesi
Profile satinizing machine is a surface treatment system designed for controlled brushing and satin finish on aluminium profiles and similar long products. The system feeds the profile at a defined speed while brush groups operate in a controlled manner. This provides a homogeneous surface appearance, consistent processing quality and repeatable production results.

Applications
Profile satinizing machine is used in aluminium profile manufacturing, surface preparation, decorative finishing and applications that require controlled satinizing. It is particularly suited to aluminium joinery profiles, construction profiles, industrial long parts and similar products where standardised surface appearance and adaptability to different profile sizes are required.

Why choose this model?
Suitable for companies seeking more consistent, repeatable and controlled surface treatment compared with manual or less controlled methods. The 6-brush configuration, independent brush speed and pressure adjustment, hydraulic height control and stainless steel contact surfaces improve surface quality and support production standards.

Advantages

• Provides controlled and homogeneous satinizing on profile surfaces.
• 6-brush arrangement enables balanced surface treatment.
• Independent speed and pressure control on brushes for different surface requirements.
• Hydraulic height adjustment allows work on various profile dimensions.
• Stainless steel contact surfaces for durability in water-exposed applications.
• Air and water cleaning at the outlet ensures cleaner output surfaces.
• Electronic speed control for soft start and stop.
• 7" touch screen for simplified operator control.
• Reduces time and labor, increasing surface treatment efficiency.

What the system delivers
Controlled brushing and adjustable pressure make it possible to achieve the desired satin finish. Defined profile feed speed and controlled brush group operation standardise surface treatment quality, providing decorative appearance, homogeneous results and repeatable production quality.

Suitable for which businesses?
Companies producing low, medium or high volumes of aluminium profiles that require controlled satinizing and homogeneous surface appearance. Effective solution for aluminium profile manufacturers, surface treatment facilities, decorative finishers and quality-focused producers.

FAQ (Summary)

• Q: What does a profile satinizing machine do? : Performs controlled brushing on aluminium profiles and similar long products to create a satin finish and homogeneous surface quality.
• Q: What advantage does a 6-brush configuration provide? : Enables more balanced and controlled surface processing for a homogeneous satin appearance.
• Q: Can it adapt to different profile dimensions? : Yes. Hydraulic height adjustment and project-specific setup allow adaptation to various profile sizes.
• Q: Is it suitable for applications that use water? : Yes. Stainless steel contact surfaces and air/water cleaning at the outlet are provided.

Technical specifications

• Operation: Controlled profile feeding and satinizing
• Number of brushes: 6
• Brush diameter: 30 cm
• Working height: 2–40 cm
• Power: 15 kW
• Power supply: 380 V
• Machine weight: 2000 kg
• Machine dimensions: 325 cm x 185 cm
• Conveyor dimensions: Infeed: 2 m + 2 m / Outfeed: 2 m + 2 m
• Control system: 7" touch screen
• Height adjustment: Hydraulic
• Brush adjustment: Independent speed and pressure control
• Body construction: Stainless steel on water-contacting surfaces
• Outlet cleaning: Air and water cleaning
