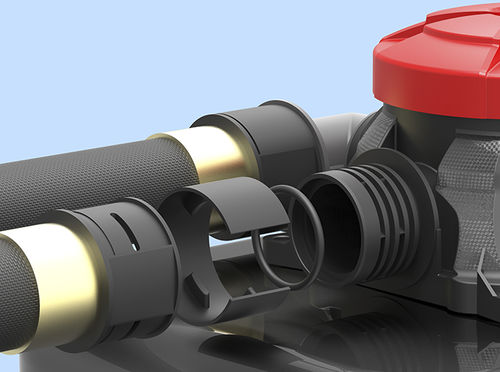

Quick connection system

The innovative “Quick-Connect“ system is an easy-toinstall and cost-effective alternative to conventional hose connection fittings. The patented system is suitable for both suction and return lines and has already been tested more than 100,000 times in many different applications in the field. Tubes that are equipped with these connections can simply be plugged into the appropriate adapters by the user and fixed with the enclosed locking clips. Done! Technical data Temperature range: - 30°C…+ 100°C Short-term up to + 120°C Operating pressure: up to 10 bar
