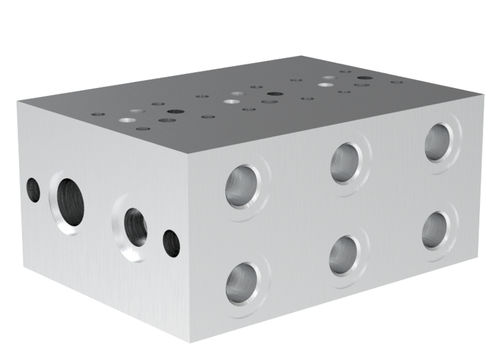

Modular clamping plate PD04 series

aluminiumrectangularhydraulic

Designed to connect in parallel two or more ISO 4401-02 (CETOP 02) valves to build compact hydraulics on each axis vertically Stackable models (Version S5) with mounting interface for SMA 05 hydraulic power unit central block Flexible design of various stackable plates enables simple creation of circuits without the use of pipes and fittings Maximum 8 parallel modular valve sections may be installed. Optional selection for A and B consumer ports position Maximum flow rate can be increased up to double the output if the sub-plates are powered at both ends Serial plates are available in aluminium. For other materials consult our technical department for their identification and feasibility Includes mounting stud kits for horizontal plate assembly BSP and SAE porting In the standard version, the aluminium serial plate is without surface protection
