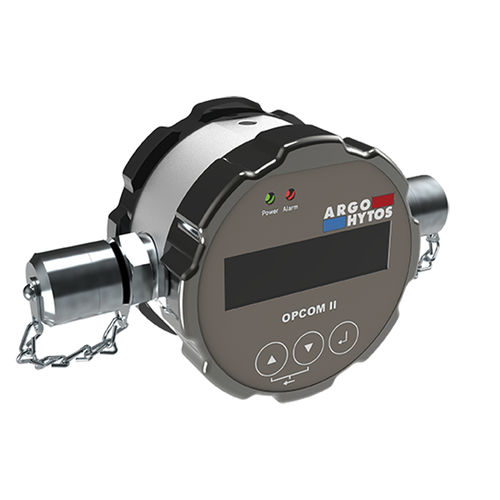

The OPCom Particle Monitor is a compact particle measurement
device for continuous monitoring of contamination and wear in
hydraulic fl uids and lubricants.
Particle monitors precisely display any change in contamination
of a system. Thus you can react quickly with an increase in
particle concentration and countermeasures can be taken.
Subsequent damages are minimized and costs are reduced.
High pressure range
The OPCom Particle Monitor is designed for operating with high
pressure. Thus it can directly be mounted to a pressure line.
The OPCom Particle Monitor is equipped with an intensely
illuminated graphic display and a keypad by which you may set
up all required adjustments. The menu navigation is made up
in tuitively and logically.
Wide communication possibilities
The OPCom Particle Monitor exports data to a serial interface or
optionally to a CAN-Bus (CANopen + SAE J1939). In parallel, the
confi gurable 4 - 20 mA interface can be connected. Over a
digital alarm output you will be warned when limits are exceeded
or fallen below. Readings can run time-controlled, manually or
started and stopped over a digital input.
