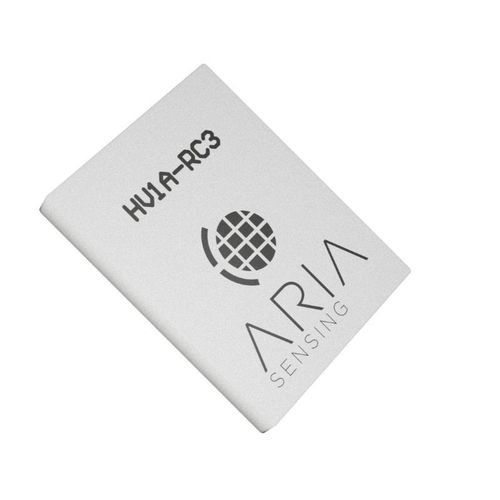

Microwave antenna HV1A RC3

PCBinternalcompact

Product type
Antenna

Overview
The HV1A RC3 is a compact antenna optimized for operation in the 7.3–9 GHz band. Its small footprint and wide operating temperature range make it suitable for integration in industrial RF modules and sensor systems requiring high-frequency coverage.

Key attributes

• emPulse Technology: Yes
• Detection Capability: Not applicable
• UWB Regulations compliance: Not applicable
• Max Range (moving person): Not applicable
• Field of View: Not applicable
• Beamwidth: Not applicable
• Embedded Antenna: Not applicable
• Frequency range: 7.3 GHz to 9 GHz
• Temperature range: -40°C to +85°C
• Flash: Not applicable
• Size: 11 mm x 10 mm
• Power consumption: Not applicable
• On board microcontroller (uC): Not applicable
• Interface: Not applicable
• Power supply: Not applicable

Technical specifications

• emPulse Technology: Yes
• Detection Capability: Not applicable
• UWB Regulations compliance: Not applicable
• Max Range (moving person): Not applicable
• Field of View: Not applicable
• Beamwidth: Not applicable
• Embedded Antenna: Not applicable
• Frequency range: 7.3 GHz to 9 GHz
• Temperature range: -40°C to +85°C
• Flash: Not applicable
• Size: 11 mm x 10 mm
• Power consumption: Not applicable
• On board microcontroller (uC): Not applicable
• Interface: Not applicable
• Power supply: Not applicable

Applications

• Integration in industrial RF modules and sensor assemblies
• Prototyping and evaluation in high-frequency systems
• Use in devices operating within the 7.3–9 GHz band

Ordering information

• Model: HV1A RC3
• Packaging and lead time: Contact supplier
