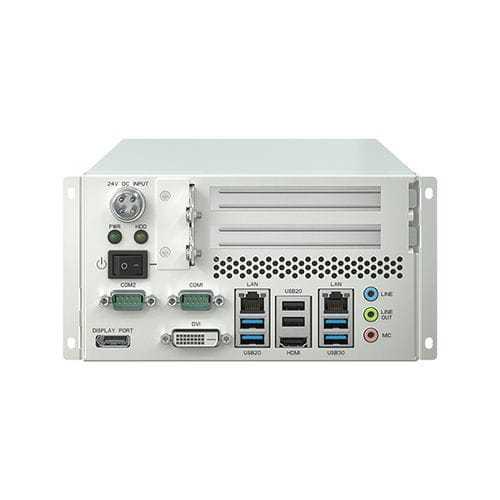

Box computer Box-203-G01 / H01

Intel® Core™ i7-6700TRS-232DVI

i7-3630QM / i7-6700T CPU Up to 16GB DDR3 / 32GB DDR4 Memory Dual Gigabit LAN 2x PCIe x8 Slots 24VDC Operating Voltage System CPU - i7-3620QM - i7-6700T Chipset - Intel QM77 - By CPU Memory - 8GB DDR3 - Up to 32GB DDR4 Video Controller - Intel HD Graphics 4000 - Intel HD Graphics 520 Video Interface - Four HDMI 2.0 (3840 x 2160) - DVI, HDMI, DP Storage Option - N/A - 2.5" SSD Compact Flash - N/A - N/A Keyboard / Mouse - PS/2 or USB Ports - PS/2 or USB Ports Audio - Line In, Line Out, Mic In - Line In, Line Out, Mic In Watchdog Timer - N/A - YES Remote Boot - ThinManager 11 Ready - PXE Expansion Slot - N/A - one PCIe x16 or two PCIe x8 I/O Communication - 　 USB Port - 4 x USB 2.0, 2 x USB 3.0 - 2x USB 2.0, 4 x USB 3.0 Serial Port - 2 x RS-232 / 422 / 485 - 2 x RS-232 / 422 / 485 IEEE 1394 - N/A - N/A LAN - 2 x Gigabit - 2 x Gigabit Parallel - N/A - N/A GPIO - N/A - N/A Smart Battery - 　 External Smart Battery - N/A - N/A OS Support - 　 OS Support - N/A - Windows 10 Pro Power / Thermal Specs. - 　 Power Requirement (Max) - 24VDC / 5A - 24VDC / 3A Power Consumption (Max) - 81 W - 72W Recommended Power Supply - 120 W - 103W Heat Dissipation - 277 BTU/Hr - 246 BTU/h Physical Information - 　 Mounting - Wall Mount - Wall Mount
