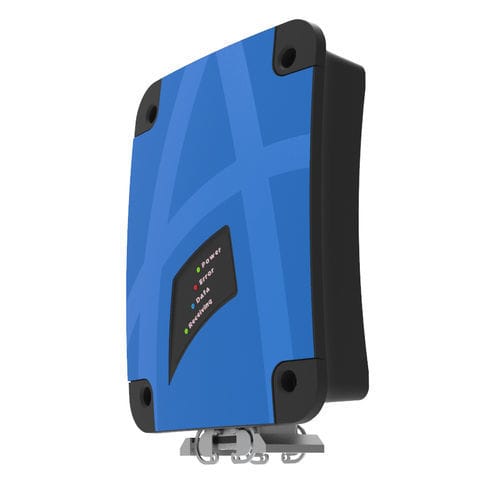

Radio receiver FLINT

digitalanalogindustrial

The most experienced member of the Receiver family, FLINT meets the needs of almost all sectors, thanks to its functionality. Appreciated for its design, Flint can offer economical and quick solutions owing to the slot card feature, in case of faults that may be experienced. Operating Voltage: 10-30VDC Current: 0.5 a Dimension 240 x 300 x 84mm Weight : 2,0kg IP Protection Rating: IP65 Receiver Status Indicator: Yes Recommended Receiver Units: Stone, Pebble, Rock Connection: Connector, multi-contact industrial plug Communication: CanBus, ModBus, Seriport Antenna: Internal, External It can be determined according to the conditions of use. Material Type Used: Impact resistant polyamide Operating Temperature: -25 ℃ +70 ℃ Analog / Digital Input and Output Thanks to the next generation modular structured PCB design, the user can choose the combination that meets his/her requirements. To the PCB board with 8 modular socket inputs; PWM Output=8 PWM modules x max. 2 slots (16 ea) Digital Output=8’ relay module x max. 3 slots (24 ea) Digital Input=16’ Digital Input Module x max. 2 slots (32 ea) 4-20mA Output / Input=8 inputs + 8 outputs 4-20mA module x max. 1 slot (8+8) Analog Output/Input=16 outputs + 8 inputs 0-10 V module x max. 1 slot (16+8) Either of CANBUS, MODBUS or PROFIBUS can be used.
