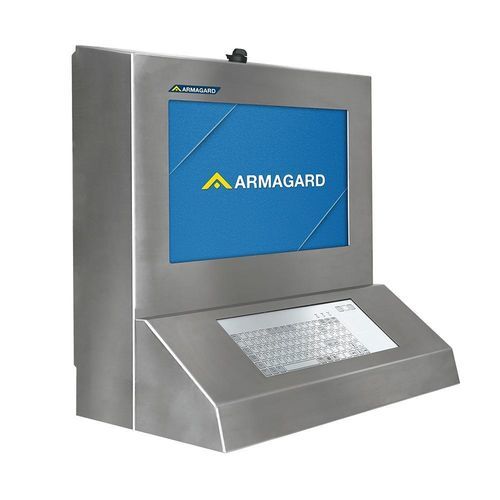

Desktop computer workstation SATX-24

for the petrochemical industryfor hazardous environmentsIP66

Product Overview
The ATEX PC Workstation provides a sealed computing solution for potentially explosive gas atmospheres. It is a Restricted Breathing (Ex nR) enclosure designed to limit gas ingress to internal electronics during normal operation in accordance with EN IEC 60079-15. Supplied with a 24" integrated display and available with an Armagard-approved micro-PC configuration, or can accept customer-supplied equipment subject to Armagard written approval and certified power limits.

Certification & Marking

• ATEX Certificate: CML 25ATEX4402X (Issue 0)
• Directive: 2014/34/EU
• Equipment Group / Category: II 3 G
• Protection Type: Ex nR IIC T4 Gc
• Ambient Temperature (Ta): 0°C to +35°C
• Standards: EN IEC 60079-0:2018, EN IEC 60079-15:2019

Ideal For

• ATEX Zone 2
• Gas plants and distribution sites
• Petrochemical facilities
• Paint and coating factories

At A Glance
Size (HxWxD) mm: 700 x 700 x 430
Display Size: 24" Integrated or VESA
Keyboard: Integrated with mouse touchpad
Material: 316 Stainless Steel
IP Rating: IP66
Mounting: Wall or worktop or stand
Product Code: SATX-24

Features & Benefits
Designed for Zone 2 gas environments, the enclosure meets ATEX requirements to reduce ignition risk while allowing normal computer operation.
Offered as a complete solution with 24" Full-HD (1,500 NITS) integrated display, sealed industrial membrane keyboard and optional factory-configured micro-PC. Customer equipment may be installed subject to certified power limits and prior written approval.
IP66 ingress protection ensures dust-tight sealing and resistance to powerful water jets for washdown environments.
316 stainless steel construction suits wet, hygienic or corrosive environments and supports regular washdown when installed per guidelines.
External power switch allows power control without opening the enclosure (dependent on integrated PC auto power-on support), limiting gas ingress during operation.
Sealed membrane keyboard with touchpad facilitates cleaning and reduces contamination risk.
Internal cooling fan maintains internal temperature within certified thermal limits to prevent hotspots.
Flexible mounting options (wall, stand or worktop) enable installation at the most suitable location in the plant.

Warranty & Guarantees

• Five-year warranty on mechanical hardware and electrical components
• Display and keyboard: 12-month warranty; computer covered by manufacturer's warranty
• Lifetime technical support

Technical Specifications

• Model / Denomination: ATEX PC Workstation
• ATEX Certificate: CML 25ATEX4402X (Issue 0)
• Directive: 2014/34/EU
• Equipment Group / Category: II 3 G
• Protection Type: Ex nR IIC T4 Gc
• Standards: EN IEC 60079-0:2018; EN IEC 60079-15:2019
• Ambient Operating Temperature: 0°C to +35°C
• Enclosure Material: 316 Stainless Steel (food-grade)
• Ingress Protection: IP66
• Overall Size (HxWxD): 700 x 700 x 430 mm
• Display: 24" Full-HD integrated or VESA mountable; 1,500 NITS brightness (integrated option)
• Keyboard: Integrated waterproof membrane keyboard with touchpad mouse
• Cooling: Internal cooling fan to maintain certified thermal limits
• Mounting Options: Wall, stand or worktop
• Product Code: SATX-24
• Typical Use Cases: Zone 2 hazardous gas areas, gas plants, petrochemical facilities, paint factories
