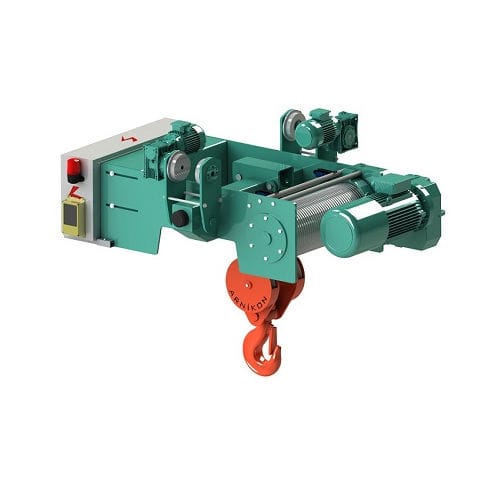

Electric cable hoist VDMH series

compactmonorail

Monorail Wire Rope Hoists Our VDMH Series Monorail cranes are manufactured by Arnikon Engineering as a purely local. The Economical and performance figures are quite high compared to other series. VDMH Series Lifting Machines are Safe machines with a compact body. Standard productions are between 1 ton and 20 ton which produced in different working class and alternative at different speeds. The VDMH Series machines, which can be designed according to all working conditions, and show the desired performance even under the most difficult conditions. VDMH Series Machines Designed to be able to use the maximum area by measurement. VDH Series Machines The lifting and drive gear units have a more secure load-bearing capability than the one keyway system when the output shaft is milled in accordance with DIN 5480. According to DIN standards, the Drum made of precision seamless steel pipe and we have GGG70 material finished rope guide system that ensures smooth wrapping with back and forth movement for the wire rope. Our wheel drive system that used in our VDMH Series traversing Groups (in carriages) is designed with a dual spin system has been specially designed against sliding
