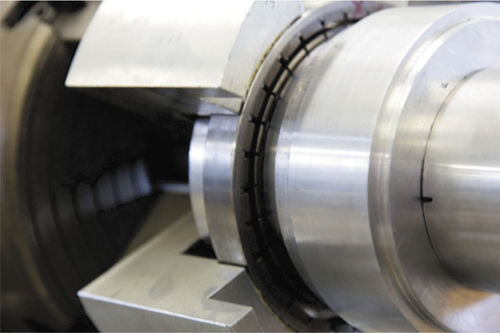

Cylindrical permanent magnet

for sensorsanisotropichigh-performance

Arnold’s patented Shaped Field Magnet (SFM) technology offers new options for designers of next-generation rotating equipment and sensor systems, whether designing new systems or looking to boost efficiency in existing equipment. By managing the magnetic field distribution, Arnold’s Shaped Field Magnets provide enhanced performance and offer greater design flexibility— often at a lower cost. Shaped Field Magnets can also replace standard permanent magnets in existing equipment, providing improved efficiency and performance. In a traditional magnet, the anisotropy within and outside a magnet is made as uniform as possible. A Shaped Field Magnet has a field with a deliberate divergence from the traditional anisotropic model. Figures 1 and 2 compare the conventional magnetic field with an SFM field arrangement. In the uniform magnetic field of a conventional magnet, a portion of the magnetic field is wasted. Whereas, in the SFM configuration, the magnetic field is shifted toward one side of the magnet, better utilizing the magnetic field. SFM and Magnetic fields technology advantages: Higher field strength in the working zone for the mass and size of the magnet Substitution of higher-temperature, lower-remanence materials Increased design freedom, with less concern for handling stray field effects Reduction of overall system weight for equipment using the SFM
