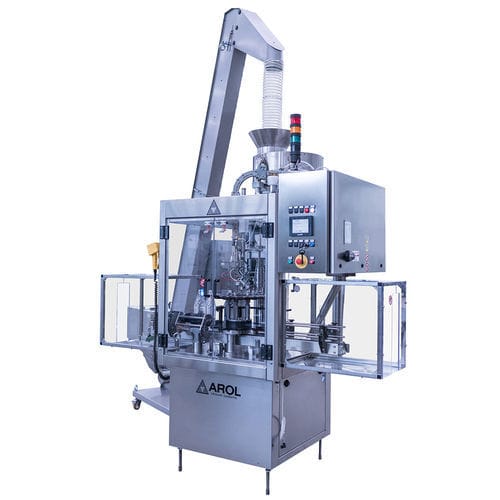

Electromagnetic capping machine EAGLE PK

automaticfor plastic screw capsfor the beverage industry

Product type
Single-head capping machine designed for pre-threaded plastic caps (flat, sport and tethered).

Application

• Pre-threaded flat plastic caps
• Pre-threaded sport plastic caps
• Pre-threaded tethered caps
• Tethered caps

Speed production
Up to 41 bpm (approx. 2,500 bph).

Closure heads
Magnetic synchronous heads; hysteresis heads.

Versions

• STANDARD: painted steel structure, non-washable
• INOX EXTERNAL SURFACES (I.E.S.): external stainless-steel components for washing of the capping area
• WASHABLE (UPON REQUEST): stainless-steel components with gaskets and labyrinths for full machine washability

Options

• On caps chute: overturned caps automatic ejector (A.E.D.) - ionizer/dust extraction - UV lamp
• Quick change format: sorter (manual or automatic) - caps chute (toolless standard execution) - chuck - body-guide assembly (toolless standard execution)
• Others: motorized height adjustment - caps elevator - additional vibrating tank - machine with motorized bottle conveyor - machine on wheels - lowered execution

Technical specifications

• Model: Eagle PK
• Type: Single-head capping machine
• Applications: pre-threaded flat, sport and tethered plastic caps
• Maximum speed: up to 41 bpm (≈ 2,500 bph)
• Closure heads: magnetic synchronous heads; hysteresis heads
• Available versions: STANDARD; INOX EXTERNAL SURFACES (I.E.S.); WASHABLE (upon request)
• Main options: overturned caps automatic ejector (A.E.D.), ionizer/dust extraction, UV lamp, manual/automatic sorter, toolless caps chute, toolless chuck and body-guide assembly, motorized height adjustment, caps elevator, additional vibrating tank, motorized bottle conveyor, wheels, lowered execution
