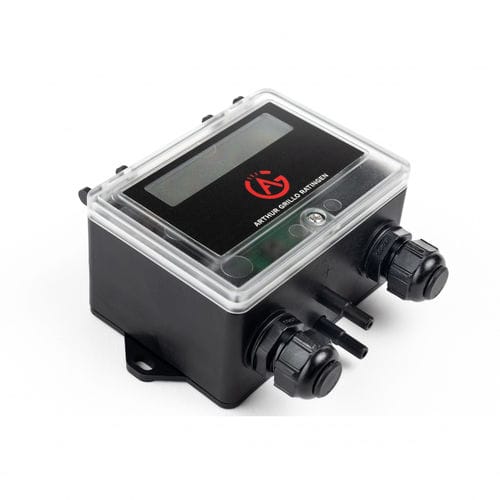

Differential pressure transmitter DPC200 seriesmembrane0-10 Vwall-mounted
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- membrane
- Output
- 0-10 V
- Mounting
- wall-mounted
- Fluid
- for gas
- Protection level
- rugged
- Applications
- for OEM, for HVAC systems, for building automation
- Other characteristics
- compact, precision, CE, low pressure, OEM, RoHS, fast response time, with display, with diaphragm seal, with volumetric flow measurement
- Pressure range
Max.: 6,000 Pa
(0.87 psi)Min.: 0 Pa
(0 psi)- Precision
0.5 %, 1 %
- Process temperature
Max.: 60 °C
(140 °F)Min.: -25 °C
(-13 °F)
Description
Switchable operating modes (measuring or controlling)
Switchable measured variables (differential pressure or volume flow)
Switchable measuring units (Pa and m3 / h or InH2O and cfm)
4 application-oriented preset measuring ranges
Adjustable k-factor for volume flow calculation
Measuring mode with adjustable limit
Control mode with adjustable:
2 setpoints
Setpoint configurable via external signal input option:
– 10 V DC signal or temperature sensor
PI parameters for PI algorithm
Maximum output voltage
Control effect positive / heat or negative / cool
Description
for pressure-, differential pressure measurement,
indicate and control of non-aggressive gaseous medium
Differential pressure measuring range: -Please state-
Supply voltage: 10 .. 30 Vdc or 24 Vac
Signal output in three-wire system: 0 ... 10 V
Dimensions: 95 x 70 x 54 mm (WxHxD)
