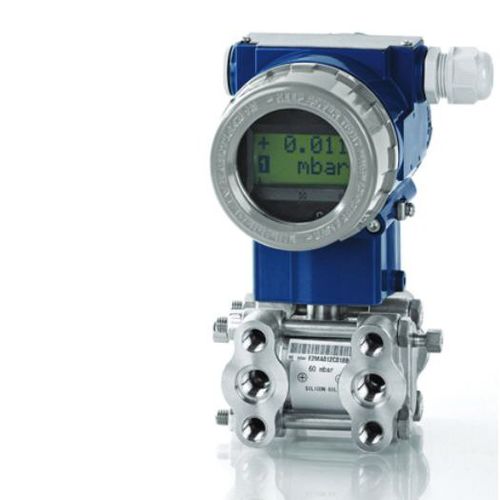

Differential pressure transmitter GPM seriesmembrane4-20 mA2-wire
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- membrane
- Output
- 4-20 mA, 2-wire
- Supply voltage
- 24VDC, 12VDC, 36VDC, 32VDC, 15VDC
- Mounting
- flange
- Process connection
- NPT 1/4
- Fluid
- for gas, for liquids
- Material
- aluminum
- Protection level
- intrinsically safe, IP67
- Pressure range
Min.: 0 bar
(0 psi)Max.: 25 bar
(362.59 psi)- Precision
0.1 %, 0.25 %
- Process temperature
Min.: -25 °C
(-13 °F)Max.: 100 °C
(212 °F)
Description
The GPM series is used for differential pressure measurement in liquids, gases or vapours. Transmitters are especially used for flow measurement with transducers for the differential pressure or dynamic pressure method.
The output of the transmitter in 2-wire technology in 4 … 20 mA.
A multi way with zero compensation can be mounted directly to the transmitter.
