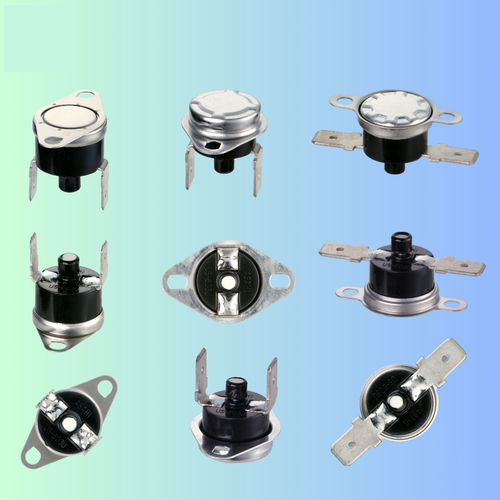

Bi-metal thermostat US-603

NCACDC

The US-603 is a bimetallic device with a manual reset button type. Its main function is to cut off the electrical circuit In a temperature range defined by the user, depending on its applications. Features：Reset button, Multiple terminals, and mounting cover assemblies are available. ★ Please contact us for specifications if they exceed the standard specification. ★ Standard Specification ➡ Electrical Rating："U" Contact Type：125 VAC 15A max. (200mA min.) 　　　　　　　　　　"U" Contact Type：250 VAC 10A max. (200mA min.) 　　　　　　　　　　"K" Contact Type：30 VDC 1A max. (5 VDC 1mA min.) 　　　　　　　　　　"K" Contact Type：120 VAC, 125VA max. (5 VDC 1mA min.) ➡ Temperature Setting range：50℃~150℃ ➡ Circuit resistance："U" Contact Type：50mΩ or Less 　　　　　　　　　　　"K" Contact Type：10mΩ or Less ➡ Insulation resistance：100MΩ or Avobe 【 With 500 VDC megger】 ➡ Withstand voltage："U" Contact Type：1,500 VAC/ 1 minute 　　　　　　　　　　　"K" Contact Type：1,200 VAC/ 1 minute ➡ Thermal resistance： 150℃ ➡ Cold resistance： -20℃ ➡ Opening-closing durability：5,000 times or more [under rated load] ★ Application: Kettles, Coffee machine, Heater, heat pump, Dishwasher, etc. ★ This Thermostat is widely used in a broad range of temperature control applications for Home appliances, Residential equipment, and Industrial and commercial equipment. ★
