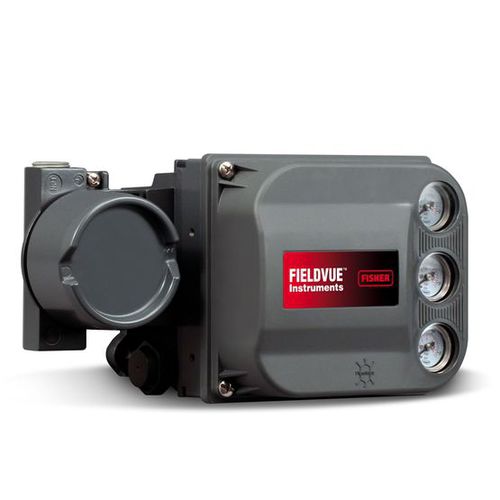

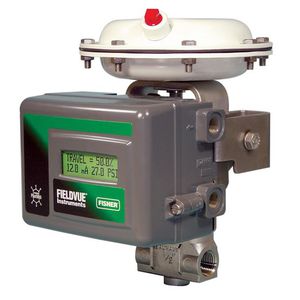

Digital valve controller FIELDVUE™ DVC6200

explosion-proofproportionalfor solenoid valves

The Fisher FIELDVUE DVC6200 instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored online to evaluate performance and reliability. Specifications Area ClassificationExplosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive for FM Certifications CSA, FM, ATEX, IECEx, CUTR, Lloyd's Register, Peso, KGS, INMETRO, NEPSI, TIIS, Natural Gas Certified, Single Seal Device Communication Protocol4-20 mA HART Data Interface Wired Diagnostics Yes Input Signal Electric Max Outlet Pressure 145 psig Mounting TypeIntegral Mounted Operating Temperature Standard Temperature, High Temperature Position Control Throttling Control, On/Off Power Source Local Process Control Flow, Pressure, Temperature, Level Features The high performance, linkage-less feedback system eliminates physical contact, which eliminates wearing on parts. The fully encapsulated electronics resist the effects of vibration, temperature, and corrosive atmospheres. Provides quick responsiveness to large step changes and precise control for small setpoint changes. The DVC6200 is a HART communicating device, so information can be accessed anywhere along the loop. This flexibility can reduce exposure to hazardous environments and make it easier to evaluate valves in hard to reach locations.
