Wireless receiver 914D

UHFradio telemetryfor wireless data transmitters

Product overview

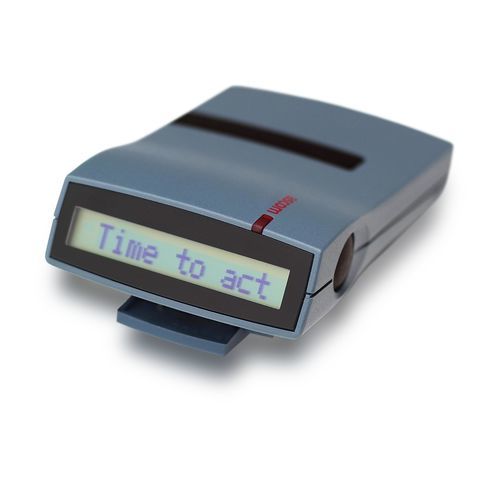

Light, easy-to-carry one-way pager designed for reliable message delivery in clinical and professional environments. Top-display allows messages to be read without removing the device from a pocket. UHF frequency version available.

Key features

• Weight: 73 g including battery
• Up to 120-character messages; storage for up to ten messages (max. 480 characters)
• 12-character alphanumeric display capability
• Seven beep alert tones and silent mode; vibrator available as an option
• Rechargeable battery compatible with standard AAA cells
• Robust, shock-resistant housing

Advanced model includes

• Time stamp for received messages
• Group paging capability
• Automatic Out of Range indication

Physical
Dimensions (H × W × D): 90 × 52 × 20 mm. Weight: 73 g including battery. Colors: Steel Grey / Ice White. Display: LCD dot matrix. Clip: hinge-type (standard) or swivel-type.

Message & display
Display capability: 12 alphanumeric characters. Message length: up to 120 characters per message. Message storage: up to ten messages (max. 480 characters).

Environmental
Operating temperature: -10°C to +55°C. Storage temperature: -20°C to +70°C. Enclosure protection: IP40 (EN60529). Free-fall: IEC 60068-2-32, dropped 12 times from 1 m.

Usage notes
Top-display enables reading messages without removing the device from pockets. Use silent mode or vibrator option for meetings and clinical environments.

Technical specifications

• Model: 914D
• Type: One-way pager
• Frequency band: UHF (version available)
• Weight: 73 g (including battery)
• Dimensions: 90 × 52 × 20 mm
• Display: LCD dot matrix, 12 alphanumeric characters visible
• Message capacity: Up to 120 characters per message; storage for up to 10 messages (max. 480 characters)
• Alerting: Seven beep signals; vibrator optional; silent mode
• Battery: Rechargeable (standard AAA sized)
• Durability: Robust, shock resistant; free-fall tested (IEC 60068-2-32)
• Ingress protection: IP40 (EN60529)
• Operating temperature: -10°C to +55°C
• Storage temperature: -20°C to +70°C
• Advanced-model features: Time stamp, Group paging, Automatic Out of Range Indication
