Multifunction calibrator ATE-2
currentpressuretemperature

multifunction calibrator
multifunction calibrator
Add to favorites
Compare this product


Characteristics

Measured physical value
temperature, pressure, multifunction, voltage, current
Options
portable, digital, precision, process, industrial, hand-held, programmable, ATEX
Temperature

Min.: -20 °C
(-4 °F)

Max.: 49 °C
(120 °F)

Pressure

10,000 psi

Voltage

Min.: 0 V

Max.: 30 V

Description

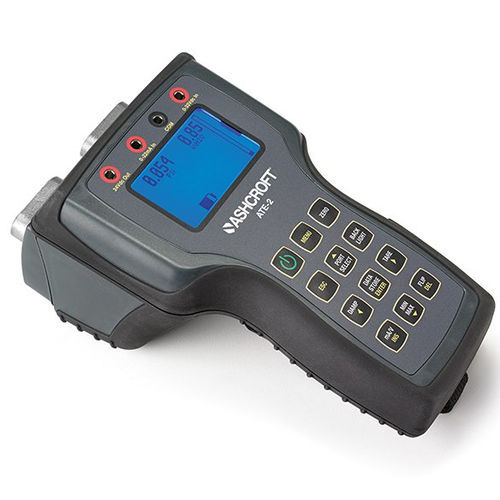

The Ashcroft® ATE-2 handheld digital calibrator is a portable, multifunction instrument performing precision measurement of pressure, temperature, current or voltage. The base unit includes application-specific firmware for the convenient calibration and setting of measurement and control devices, as well as logging of associated data. In addition, the ATE-2 has the ability to interface with a computer, data acquisition system or terminal emulator via the standard USB interface. An ideal instrument when precision calibration and traceability are required. Key Features: Interchangeable pressure modules with ranges from 0.25 in. H2O up to 10,000 psi Large LCD display (1.5″ x 2.5″) FM, CSA and ATEX Intrinsically safe versions for Hazardous Locations (Options) Dual sensor module bay for interchangeable modules Data logging capability up to 16,000 records USB communications port SD memory card slot SD memory card slot Standard firmware features – min./max., tare, programmable damping, percent function, and switch test Built in Power supply to power device under test Applications: Process Market: Gas pipeline / transmission Refineries Chemical and Petrochemical Plants Power Generation Industrial Market: Test and Measurement Calibration Laboratories Medical and Life Sciences: Pharmaceutical and Biotech Hospitals and Medical Research Sensor Inputs Banana jack inputs for DC voltage or current monitoring Two Interchangeable pressure and temperature module bays
