Spray marking machine AC-BTS

mobileindustrialcylinder

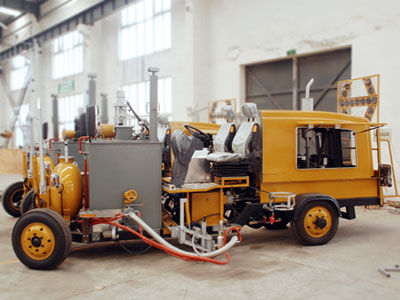

AC-BTS Big Driving-type Thermoplastic Spraying Road Marking Machine are low-pressure air spraying thermoplastic road marking machine with high efficiency and flexibility. It can serve long distance and continuous line marking work. The spray thickness is adjustable and not effected by the old marking line. Features 1.Engine: 37KW water-cooled electrical starting diesel engine with four-cylinder in-line that is environmental protection with low noise. The fuel tank Capacity is 60L. 2.Heating mode:Infrared propane heating, electronic ignition, automatic temperature control and conduction oil heating that can save more than 30% fuel compared with traditional heating mode, and make the heating evener, quicker, more secure and more environmental protection. 3. Driving system: Imported oil pressurized continuously variable speed transmission system (HTS) with an automatic brake device that can freely go ahead, back off and stop. The left and right back wheels are equipped with a differential speed gearing to ensure it to drive freely around the curve and change directions timely. Driving speed: 0-22km/h, maximum climbing capacity: 15°. 4. Marking mode: Equipped with double atomized air-auxiliary spray gun with low pressure. The atomized gas's heating oil recycle pump and heat exchanger in this system is able to improve the spray effect. 5. Glass beads spraying system: Equipped with 120L capacity pressurized glass beads bin with windows that can uninterruptedly spray glass beads. Glass beads sprayer can be equipped on the left or right, whose pressure and flow rate and spray width can be freely adjusted to ensure the spraying glass beads firmer, evener and more economical.
