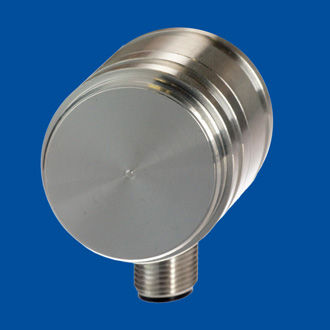

1-axis inclination sensor PTK2

CANIP67

For general industrial applications, mobile working machines Measurement range up to ±180° (1 axis) or ±60° (2 axes) Linearity up to 0.05° Protection class IP67 / IP69 Specifications Output - Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire CANBUS Measurement range - Up to ±180° (1 axis) or ±60° (1 axes) Resolution - 0.05° Linearity - Up to 0,05° (±30°) Up to 0,1° (±60°) Up to 0,2° (±180°) Sensing device - Gyro-compensated MEMS device Housing material - Stainless steel Protection class: - IP67 / IP69 Connection - 5-pin connector M12 Weight - Approx. 50 g (without cable)
