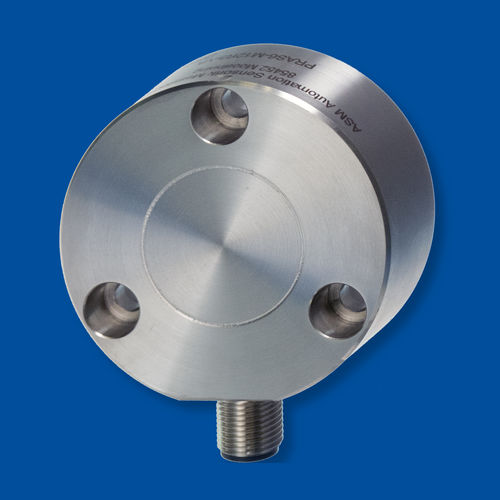

Incremental angle encoder posirot® PRDS6

magneticnon-contactRS-422

Magnetic angle encoder 0 to 360° in a flat housing Non-contact with external position magnet Protection class IP67 / IP69 Incremental encoder output Specifications Output - Encremental encoder output RS422-/HTL compliant Measurement range: - 0 ... 360° Resolution - 256 or 1024 pulses per revolution Linearity - ±1° Repeatability - depending on resolution Housing material - Stainless steel Protection class: - IP67/IP69 (connector output with IP67/IP69 connector cable) Connection - 8-pin connector M12 Cable, standard length 2m Cable with Deutsch connector DT04 Weight (without cable) - approx. 390g (without cable)
