Multi-axis inclinometers

Inclination: -85 ° - 360 °
Resolution: 0.1, 0.01, 0.02 °

Inclination sensors reliably detect inclination angles in plants and machinery. Whether you choose the F99 series with a two-piece mounting concept or the one-piece F199—inclination sensors from Pepperl+Fuchs are extremely ...

Inclination: -15 ° - 15 °
Resolution: 0.09 °

Measuring principle MEMS Measuring axes 2 Operating voltage Ub 12...30 VDC Interface 2x Analog, voltage 0…10 V Accuracy ±1.0° Connection Connector, M12x1 Housing material Plastic Ambient temperature -40...80 °C IP ...

Inclination: -180 ° - 360 °
Resolution: 0.001, 0.1, 0.01 °

Precise measurement of angles of inclination on X and Y axes High measurement accuracy across the total angular range in two axes Zero point, counting direction and limit frequency adjustable Compact and robust housing ...

Inclination: -180 ° - 180 °
Resolution: 0.01, 0.05 °

• Precise measurement of angles of inclination on X and Y axes • High measurement accuracy across the total angular range in two axes • With two programmable switching outputs, two scalable analogue outputs and IO-Link • Compact and ...

Inclination: -85 ° - 85 °
Resolution: 0.01 °

Rectangular, plastic, Ultem Status displayed via LED Angle detection along two axes with ±85 ° measuring range Temperature detection from -40 °C to 85 °C High protection class IP68/IP69K ...

Inclination: -85 ° - 85 °
Resolution: 0.01 °

Rectangular, plastic, Ultem Status displayed via LED Angle detection via two axes with ±85 ° measuring range Temperature detection from -40 °C to 85 °C High protection class IP68/IP69K ...

Inclination: 180 °
Resolution: 0.05 °

High accuracy inclination sensor Measurement range up to ±180° Single or dual axis measurement Robust, compact plastic housing Protection class IP67 Specifications Output - Voltage 0.5 ... 10 ...

Inclination: 5 ° - 180 °
Resolution: 0.05 °

High accuracy inclination sensor Single or dual axis measurement Resolution up to 0.001° Robust, compact stainless steel housing Protection class up to IP69 Specifications Output - Voltage 0.5 ...

Inclination: 180 °
Resolution: 0.05 °

Robust plastic housing Single or dual axis measurement Protection class IP67 Specifications Output - Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, tare function CANopen SAE ...

Inclination: 90 ° - 180 °
Resolution: 0.01 °

... anti-vibration performance> 2000g IP67 protection level Product Description HDA436T，A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, ...

Inclination: 60 °
Resolution: 0.01 °

HDA536T is a new-generation digital MEMS dynamic tilt sensor launched by RION. It has a built-in high-accuracy acceleration and gyro sensor and integrates a Kalman filter algorithm to dynamically measure the attitude ...

Inclination: 1 ° - 60 °
Resolution: 0.001 °

VOLTAGE INCLINOMETER WITH FULL TEMP-COMPENSATION Dual axis inclination measurement Temperature drift ±0.0008°/℃ Wide voltage input: 9~36V Wide temperature working: -40~+85℃ Highly anti-vibration ...

Units - DEG, mm/m, „/10“, „/12“, mRad, DEG/min, min/sec, mm/REL, „/REL, A%o, GON Standard - DIN 2276 Max. perm. errors - 2' + 1 digit Resolution - 0,025 mm/m Material - Aluminium anodised Dimensions - 100 x 75 x 35 mm Measuring ...

Units - DEG, mm/m, "/10", "/12", mRad, mm/REL, "/REL A%o, %o, GON Standard - DIN 2276 Resolution - Models ± 60°: 0,005 mm/m Model ± 1°: 0,001 mm/m Material - Cast iron model, rust-protected or aluminium model, black anodized Dimensions ...

Inclination: -70 ° - 70 °
Resolution: 1, 0.001 °

... required to take stationary measurements of inclinations of two orthogonal axes in relation to earth, you can use the dual axis inclinometer module SCK-11. The range of measurement is from -70 to +70 ...

Inclination: 0 grad - 360 grad
Resolution: 0.14 grad

... Robust design - Compact design - 1-dimensional or 2-dimensional 1-dimensional inclinometer. Unmistakable accuracy – even in harsh environments. The IS40 inclinometer is used for the acquisition ...

Inclination: 360 °
Resolution: 1 grad

Precise and reliable detection – even in harsh environments. Kübler inclinometers can be used for any conceivable application. Their robust housing, high degree of protection and wide temperature range contribute to ...

Inclination: 0 grad - 360 grad
Resolution: 0.2 grad

Precise and reliable detection – even in harsh environments. Kübler inclinometers can be used for any conceivable application. Their robust housing, high degree of protection and wide temperature range contribute to ...

Inclination: 10 °
Resolution: 0.0055 °

The BeanDevice® HI-INC-SR is a high-performance wireless inclinometer with a scalable measuring range ( ±10° and ±90°, with automatic range adjustment depending on the application).It offers a high level of precision ...

Inclination: 15 ° - 30 °
Resolution: 0.001 °

Available with several measurements range (±15° and ±30°), the BeanDevice® Wilo HI-INC is an ULP (Ultra-Low-Power) WIFI inclinometer with a built-in data logger. Characterized by a waterproof (IP67/Nema 6) and a lightweight ...

Inclination: -15 ° - 30 °
Resolution: 0.001 °

Available in several versions (bi-axis ±30°), the BeanDevice® 2.4GHz HI-INC is a wireless inclinometer with an integrated data logger. Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum ...

Resolution: 0.0001 °

BWS5000E is a dual-axis high-precision tilt sensor with MEMS technology and digital output launched by Bewis Sensing Technology LLC. It has a measurement range of ±15°, a maximum accuracy of 0.001°, and ...

... areas. The Texense RAD6-M lean angle sensor features: 6 axes inertial sensor with high accuracy (offset, gain, cross-axis and temperature drift compensated). Roll angle calculations are integrated. CAN ...

Inclination: -90 ° - 90 °
Resolution: 0.1 °

... Wireless setting with Rfid technology Radio communication, GSM/GPRS option Sealing grade IP68 This inclination sensor is suitable for multiple applications. It is characterized by its compact ...

Inclination: 30, 90, 180, 360 °
Resolution: 0.1 °

QJJ200 Series tilt sensor is MEMS tilt sensor for measuring the angle between the measured surface and the horizontal plane. Embedded MCU control system, the compensation temperature range within (-45 ...

Inclination: 75, 60, 40, 20 °
Resolution: 0.01 °

☆ High accuracy ☆ Small size Application ☆Engineering machinery horizontal measurement ☆Coal-winning machinery horizontal measurement

Inclination: 20, 75 °
Resolution: 0.01, 0.05 °

☆Small size, light weight Application ☆engineering machinery horizontal measurement ☆Laboratory instrument leveling

Inclination: 1 ° - 60 °
Resolution: 0.0001 °

MEMS Inclinometer Series The JDI-100/200 series is a digitally temperature compensated inclinometer available in single and dual axis configurations. The robust and rugged design is ...

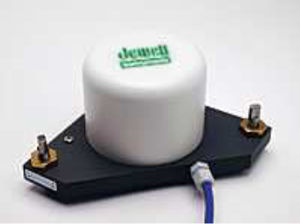

The model A701-2 Platform mount tiltmeter is our most popular design for high precision tilt measurements. Units come with built in invar leveling legs, for easy installation on any horizontal surface. The A701-2 also ...

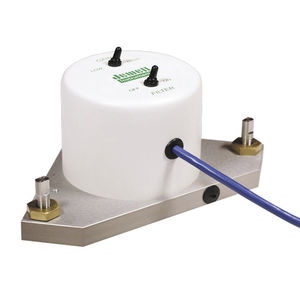

The model D701 Digital Platform Tiltmeter is a high-precision instrument with advanced firmware features. Output is RS232 or RS422 (RS485 full duplex). The D701 also includes invar leveling feet for easy installation ...

Resolution: 0.0015 °

DUAL AXIS INCLINOMETERS DESIGNED TO WITHSTAND HARSH OPERATING CONDITIONS Those dual axis inclinometers are designed to measure very small changes from the vertical ...

Inclination: -30 ° - 30 °
Resolution: 0.1 °

NI1000-330M-LWP-ANx-YKC0 is a dual-axial tiltmeter of high accuracy. With the latest NB-IoT wireless communication technology embedded, the tiltmeter can be widely used in geotechnical and structural ...

Inclination: -60 ° - 60 °
Resolution: 0.01 °

The Digital Inclinometer is a robustly constructed instrument designed for clear simple reading, the system is ideal where precision angle is required over a large range. All four quadrants of the system are precision ...

Inclination: 0 ° - 360 °

The TB100 Microptic Clinometer has been designed for simplicity and very high accuracy. The Clinometer uses a precisely divided circular glass scale, mounted on a spindle that rotates in a high quality bearing. At the end of the spindle ...

Inclination: -60 ° - 360 °
Resolution: 0.01 °

An inclinometer measures the angle to the direction of the gravity in one or more axes. TLP300 is the new family of inclination sensors, based on the MEMS technology, capable of working in extreme conditions and hard ...

Inclination: -85 ° - 360 °
Resolution: 0.01 °

... the same time. A separate measure is provided for each axis. TLP300 single axis inclinometer : The 1-dimensional tilt sensor must be installed with the base plate ...

Inclination: -60 ° - 60 °
Resolution: 0.2 °

2 AXIS INCLINATION SENSORS (-60° ÷ + 60°) • Analog linear output • Cable output • General Features: These sensors give two output signals from 0,7 to 4,3 V proportional to the inclination ...

Inclination: -60 ° - 60 °
Resolution: 0.2, 0.1 °

2 AXES INCLINATION SENSORS with analogue voltage output • Self teaching of zero position • Insensitive to shock and vibrations • High thermal stability • Low power General features: These sensors give two output ...

Inclination: -60 ° - 60 °
Resolution: 0.1, 0.05 °

2 AXES INCLINATION SENSORS with analogue voltage output • High thermal stability • Rugged anodized aluminum housing • Low power • Insensitive to shock and vibrations General features: These sensors give two output ...

Inclination: -1 grad - 1 grad
Resolution: 0.00005 grad

Dual axis inclinometer BlueLEVEL-2D The perfect dual-axis inclinometer for measuring straightness, parallelism, flatness, squareness, and machine geometry. When ...

Inclination: -60 ° - 60 °

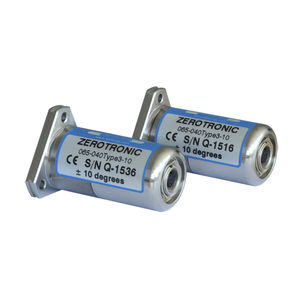

ZEROTRONIC inclination sensor The sensors of the ZEROTRONIC family are very precise and robust inclination sensors with a measuring range from ±0.5° bis ±60°. The inclination sensors ...

Inclination: -1 ° - 1 °

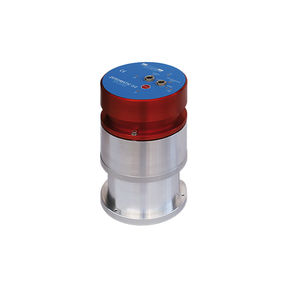

ZEROMATIC dual-axis inclination sensor The ZEROMATIC is a high-precision dual-axis inclination sensor for long-term monitoring with a measuring range of ±1°. The ...

Inclination: 15, 30 °
Resolution: 0.025 °

... to measure, accurately and with high resolution, accelerations and inclinations on X and Y axis, with absolute vertical reference. When X and Y measuring axis are parallel to horizon, ...

Inclination: 30, 45, 15 °
Resolution: 0.025 °

• Measuring of inclination on two axis, in relation to the horizon up to ±45° • Rotation measuring on a single axis, on a vertical surface, up to ±180° • Modbus or CANopen protocols • ...

Inclination: 10 °
Resolution: 1 °

Highest accuracy 3-axis inclination measurement is available with Murata's SCL3300. This sensor also features direct inclination angle output making it a perfect choice for variety of different use cases and applications. The ...

µLevel is exactly a spirit leveler (inclinometer),its gravity keeps reference with all spirit levels. It is a superb aid for the measurement for machine level and straightness in vertical plane.At the ...

Resolution: 1 °

... -90 TILT SENSOR FLOOR MT • All AXISENSE-2 V-OUT TILT SENSOR FLOOR MOUNT (3) • Measurement Principle : MEMS • Tilt Sensor & Inclinometer Package : Plastic Housing • ...
