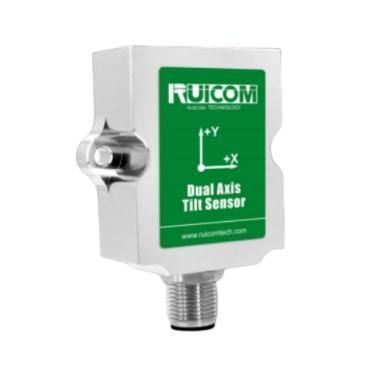

2-axis tilt sensor LTS6

XYCANMEMS

Key features

• Six installation methods
• Resolution 0.1°
• Output: CAN2.0B
• High vibration resistance >2000g
• IP67 protection

Product introduction
The LTS6 series is a compact, dynamic-measurement MEMS tilt sensor designed to provide stable attitude measurement on moving platforms. It uses a dual-channel gravity tilt unit to measure static gravitational acceleration and convert it to tilt and pitch angles relative to the horizontal plane. The sensor includes an embedded MCU for dual-stage linearity correction, improving accuracy versus traditional analog solutions. The device employs a non-contact measurement principle to deliver real-time attitude output, is simple to operate and does not require aligning two mounting surfaces. It is suited to both static and dynamic measurement scenarios and is intended for industrial automation, platform attitude monitoring and similar applications. The unit offers strong immunity to electromagnetic interference and long-term stable operation in harsh environments.

Performance parameters

• Measurement range: ±90°
• Measuring axes: X axis / Y axis
• Resolution: 0.1°
• Static accuracy (@25°C): ±0.3°
• Dynamic accuracy (@25°C): ±0.8°
• Zero-point temp. coefficient (-40°C~85°C): ±0.01 °/°C
• Sensitivity temp. coefficient (-40°C~85°C): ≤100 ppm/°C
• Power-on startup time: 1.5 s
• Response time: 0.05 s
• Output signal: CAN2.0B
• EMC: According to EN 61000 and GB/T 17626 series
• Insulation resistance: ≥100 MΩ
• Impact resistance: 100 g @ 11 ms, triaxial (half-sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Protection level: IP67
• Cable: Standard 2 m shielded cable
• Size: L64.5 × W50 × H18.5 mm
• Weight: ≤100 g (excluding cable)

Technical specifications

• Model: LTS6
• Measurement range: ±90°
• Axes: X / Y
• Resolution: 0.1°
• Static accuracy: ±0.3° (@25°C)
• Dynamic accuracy: ±0.8° (@25°C)
• Temperature coefficients: zero-point ±0.01 °/°C; sensitivity ≤100 ppm/°C
• Startup time: 1.5 s
• Response time: 0.05 s
• Interface: CAN2.0B
• EMC standards: EN 61000, GB/T 17626 series
• Ingress protection: IP67
• Mechanical robustness: 100 g impact, 10 grms vibration
• Cable: 2 m shielded (standard)
• Dimensions: 64.5 × 50 × 18.5 mm
• Weight: ≤100 g (without cable)
