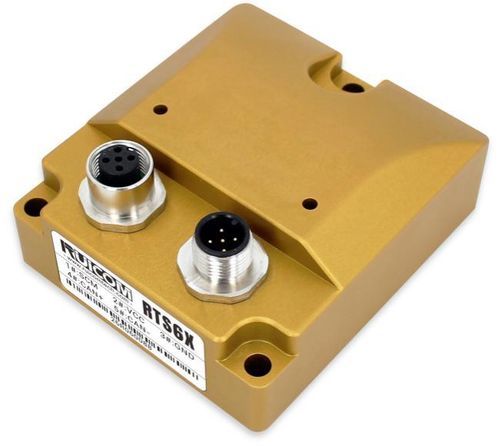

Single-axis tilt sensor RTS6

CANopenIP67shockproof

Product introduction
The RTS6 tilt sensor implements a dual-channel redundant architecture with single-axis (X axis) measurement. Two independent operating channels act as mutual backups to maintain stable operation in case of channel failure. The device combines hardware and software redundancy, dual-channel data comparison for noise suppression, and real-time status reporting via dual-color LEDs and a status register. RTS6 uses CANopen communication and is designed for strong electromagnetic compatibility and environmental protection. Factory calibration and digital filtering are applied to ensure measurement consistency and traceability.

Key Features

• Dual-channel redundant architecture for fault tolerance and continuous operation
• Single-axis measurement (X axis) with ±180° range
• Resolution 0.1°; accuracy ±0.1° (@25°C)
• Dual-channel data comparison for noise suppression and improved reliability
• CANopen communication protocol
• Wide supply voltage: DC 9–36 V
• Wide operating temperature: -40 to +85°C
• Dual-color LED status indicators and status register for diagnostics
• Factory calibration and digital filtering applied
• Ingress protection IP67; robust vibration and shock resistance

Performance Parameters
Measurement range: single axis ±180°
Measuring axis: X axis
Resolution: 0.1°
Measurement accuracy (@25°C): ±0.1°
Zero-point temperature coefficient (-40–85°C): ±0.02°/°C
Power-on startup time: 0.5 s
Cutoff frequency: 0.9 Hz
Output signal: CANopen
Electromagnetic compatibility: according to EN61000 and GBT17626
MTBF: ≥98,000 hours
Insulation resistance: ≥100 MΩ
Impact resistance: 100 g @ 11 ms, triaxial (half-sine)
Vibration resistance: 10 grms, 10–1000 Hz
Ingress protection: IP67
Weight: ≤220 g (excluding cable)

Technical specifications

• Model: RTS6
• Measurement range: single axis ±180°
• Measuring axis: X axis
• Resolution: 0.1°
• Measurement accuracy (@25°C): ±0.1°
• Zero-point temperature coefficient: ±0.02°/°C (-40–85°C)
• Power-on startup time: 0.5 s
• Cutoff frequency: 0.9 Hz
• Output: CANopen
• EMC: EN61000, GBT17626
• MTBF: ≥98,000 hours
• Insulation resistance: ≥100 MΩ
• Impact resistance: 100 g @ 11 ms, triaxial (half-sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Ingress protection: IP67
• Weight: ≤220 g (excluding cable)
• Supply voltage: DC 9–36 V
