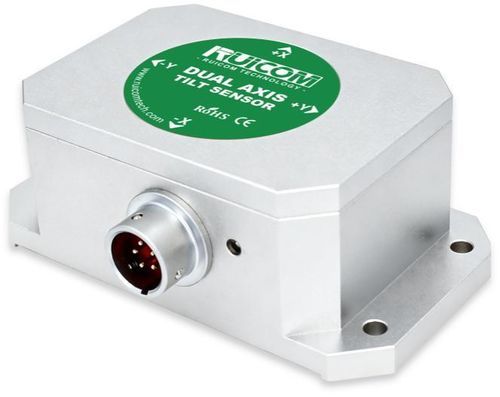

Single-axis tilt sensor HTS6

dual-axisCANopenrugged

Product Overview
RUICOM Technology HTS6-CANopen tilt sensor improves measurement accuracy and temperature-drift performance based on the STS series design. It integrates a high-precision 16-bit A/D differential converter and a fifth-order digital filtering algorithm to measure tilt and pitch relative to the horizontal plane. The CANopen interface enables native industrial protocol integration. A built-in digital temperature sensor supports real-time temperature-drift compensation (temperature output optional). The device supports high response frequencies (standard 50Hz; higher rates customizable) and an industrial-grade design for electromagnetic and environmental robustness.

Key Features

• Wide input voltage: DC 9–36 V
• CANopen output (industrial protocol)
• Resolution: 0.001°
• Selectable measurement range: ±1° to ±35° (examples: ±10°, ±35°)
• Single-axis or dual-axis configurations
• Built-in digital temperature sensor for drift compensation (temperature output optional)
• Configurable output rates: 5 / 15 / 35 / 50 Hz (50 Hz standard, higher customizable)
• Protection class: IP67; industrial EMC per EN61000 and GBT17626

Performance Parameters

• Measurement range: selectable (examples on page: ±10°, ±35°)
• Measurement axis: single-axis or dual-axis
• Resolution: 0.001°
• Measurement accuracy (@25°C): 0.005° (smaller range) / 0.01° (larger range)
• Long-term stability: 0.01° / 0.02° (depending on range)
• Zero-point temperature coefficient (-40–85°C): ±0.002°/°C
• Sensitivity temperature coefficient (-40–85°C): ≤50 ppm/°C
• Power-on startup time: 0.5 s
• Response frequency: 20 Hz (output rate configurable up to 50 Hz)
• Output signal: CANopen
• EMC: meets EN61000 and GBT17626
• MTBF: ≥99,999 hours
• Insulation resistance: ≥100 MΩ
• Shock resistance: 100 g @ 11 ms, triaxial (half-sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Protection class: IP67
• Wiring: standard 2 m shielded cable with 7P × 6.8 mm aviation connector; abrasion-resistant, wide-temperature rated; cable weight ≤110 g
• Weight: ≤250 g (excluding cable)

Product Dimensions
Detailed dimension diagram is provided on the product page (refer to product dimensions diagram).

Technical Specifications

• Model: HTS6
• Measurement range: selectable (±1° to ±35°)
• Measurement axis: single-axis or dual-axis
• Resolution: 0.001°
• Accuracy (@25°C): 0.005° (smaller range) / 0.01° (larger range)
• Long-term stability: 0.01° / 0.02°
• Zero-point temp. coefficient: ±0.002°/°C (-40–85°C)
• Sensitivity temp. coefficient: ≤50 ppm/°C (-40–85°C)
• Response frequency: 20 Hz (output configurable up to 50 Hz)
• Output: CANopen
• Input voltage: DC 9–36 V
• EMC: EN61000 / GBT17626
• MTBF: ≥99,999 hours
• Insulation resistance: ≥100 MΩ
• Shock: 100 g @ 11 ms (triaxial, half-sine)
• Vibration: 10 grms (10–1000 Hz)
• Protection: IP67
• Cable: 2 m shielded, 7P × 6.8 mm aviation connector (standard)
• Weight: ≤250 g (excluding cable)

Typical Applications

• Platform and chassis attitude monitoring
• Industrial automation and machine alignment
• Robotics and stabilization systems
• Maritime and offshore inclination monitoring
• Construction machinery and leveling systems
• Aerospace test benches and ground equipment
