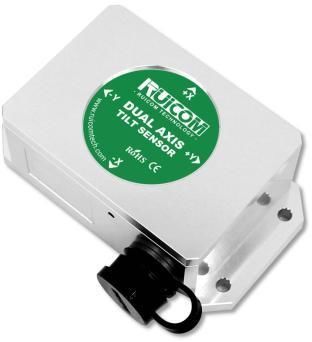

Single-axis tilt sensor HTS6

XYanalogvoltage output

Product Introduction
The HTS6 series analog voltage output tilt sensor provides precision tilt measurement for industrial applications. It supports single‑axis and dual‑axis measurement, using a miniature solid‑state pendulum to sense the gravity vector and convert tilt into a standard 0‑5V voltage output. The module integrates a 24‑bit differential ADC and an embedded MCU for real‑time processing, automatic temperature compensation and nonlinear correction, delivering calibrated linearized output without the need for secondary calibration. The sensor uses a non‑contact measurement design and MEMS manufacturing for compact size, simplified installation and improved EMI resistance, suitable for industrial attitude monitoring and control.

Key Features

• Selectable measuring ranges: ±1° to ±90°
• Accuracy (MAE): 0.005° for small‑range at room temperature
• Resolution: 0.001°
• Output: Analog voltage 0–5V (zero approx. 2.5V)

Performance Parameters (table)
Model: HTS6 | Condition: — | Parameter: —
Measurement ranges: ±10°; ±30°; ±60°; ±90° (selectable coverage up to ±1°–±90°)
Measurement axis: X / XY axis
Zero output: 2.5V (approx.)
Resolution: 0.001°
Accuracy (MAE) at Room Temp: ±10° -> 0.005°; ±30° -> 0.01°; ±60° -> 0.02°; ±90° -> 0.03°
RMSE at Room Temp: ±10° -> 0.003°; ±30° -> 0.003°; ±60° -> 0.005°; ±90° -> 0.008°
Zero‑point temperature coefficient: -40~85°C -> 0.0005°/°C
Sensitivity temperature coefficient: -40~85°C -> ≤100ppm/°C
Power‑on start‑up time: 0.5s
Response frequency: 20Hz
EMC: according to EN61000 and GBT17626
Insulation resistance: ≥100MΩ
Shock resistance: 100g @ 11ms, 3 axial directions (half sinusoid)
Vibration resistance: 10grms, 10~1000Hz
Protection class: IP67
Cable: standard 1m shielded aviation connector (7P×6.8mm), abrasion‑resistant, wide temperature range, cable weight ≤110g
Weight: ≤250g (excluding cable)

Product Dimensions
Product dimensions and outline drawings are available in the technical documentation and images on the product page.

Technical Specifications

• Model: HTS6
• Output signal: Analog voltage 0–5V (zero approx. 2.5V)
• Measurement modes: Single‑axis and dual‑axis
• Core components: 24‑bit differential ADC and embedded MCU
• Compensation: Automatic temperature compensation and nonlinear correction (industrial calibrated linearized output)
• Measurement principle: Gravity vector decomposition via miniature solid‑state pendulum
• Non‑contact measurement design (no reference surface alignment required)
• MEMS sensing element (compact, EMI resistant)
• Selectable ranges: ±10°, ±30°, ±60°, ±90° (coverage up to ±1°–±90°)
• Resolution: 0.001°
• Accuracy (MAE) at room temp: 0.005° / 0.01° / 0.02° / 0.03° depending on range
• RMSE: 0.003°–0.008° depending on range
• Operating temp range for tempco: -40~85°C
• Zero tempco: 0.0005°/°C
• Sensitivity tempco: ≤100ppm/°C
• Response frequency: 20Hz
• Start‑up time: 0.5s
• EMC standard: EN61000, GBT17626
• Insulation resistance: ≥100MΩ
• Shock resistance: 100g @ 11ms
• Vibration resistance: 10grms, 10~1000Hz
• Protection class: IP67
• Cable: 1m shielded aviation connector (7P×6.8mm), cable weight ≤110g
• Product weight: ≤250g (excluding cable)
