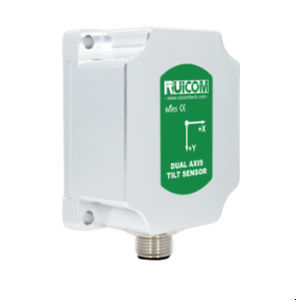

Single-axis tilt sensor STS

XYRS-485RS-232

Product Introduction
The STS standard output tilt sensor from RUICOM Technology is engineered for industrial automation measurement. It integrates a high-performance MEMS tilt unit with a 24-bit differential A/D converter and a fifth-order digital filter to deliver precise measurements of roll and pitch in a compact industrial housing. Available with TTL, RS232 or RS485 outputs and MODBUS RTU option, the STS is designed for reliable field operation with IP67 protection.

Key Features

• Single- or dual-axis tilt measurement (X / XY)
• Extra-wide measurement range up to ±180°
• High accuracy across ranges (down to 0.01° full-scale)
• Industrial-grade design with IP67 sealing

Performance Parameters (summary)
Measurement ranges: ±10°, ±30°, ±60°, ±90°, ±180°
Measuring axis: X / XY (model-dependent)
Resolution: 0.001°
Accuracy (MAXE at room temperature): ±10°: 0.01°; ±30°: 0.01°; ±60°: 0.015°; ±90°: 0.02°; ±180°: 0.02°
RMSE (room temperature): ±10°: 0.008°; ±30°: 0.008°; ±60°: 0.008°; ±90°: 0.009°; ±180°: 0.009°
Zero-point temperature coefficient (operating -40~85°C): ±0.0005°/°C
Sensitivity temperature coefficient (operating -40~85°C): ≤0.01%/°C
Response frequency: 20 Hz
Power-on startup time: 0.5 s
Output signal: TTL / RS232 / RS485 (optional)
Communication protocol: Serial / MODBUS RTU (optional)
EMC: Conforms to EN61000 and GBT17626
Ingress protection: IP67

Technical Specifications

• Model: STS
• Brand: RUICOM Technology
• Available ranges: ±10°, ±30°, ±60°, ±90°, ±180°
• Measuring axis: X or XY (depending on range)
• Resolution: 0.001°
• Accuracy & RMSE: see performance summary
• Zero-point temp. coeff.: ±0.0005°/°C (–40~85°C)
• Sensitivity temp. coeff.: ≤0.01%/°C (–40~85°C)
• Startup time: 0.5 s
• Response frequency: 20 Hz
• Output interfaces: TTL, RS232, RS485 (optional)
• Protocol: Serial / MODBUS RTU (optional)
• EMC: EN61000 / GBT17626 compliant
• MTBF: ≥ 99,000 hours
• Insulation resistance: ≥ 100 MΩ
• Shock resistance: 100 g @ 11 ms, triaxial (half-sine)
• Vibration resistance: 10 g rms, 10–1000 Hz
• Ingress protection: IP67
• Cable: Standard 2 m M12 aviation plug with PVC shielded cable, cable weight ≤ 120 g
• Weight: ≤ 150 g (excluding cable)

Typical Applications

• Industrial machinery leveling and monitoring
• Platform / gantry orientation control
• Construction and civil engineering measurement
• Marine and offshore inclination monitoring
• Agricultural equipment and vehicle attitude sensing
