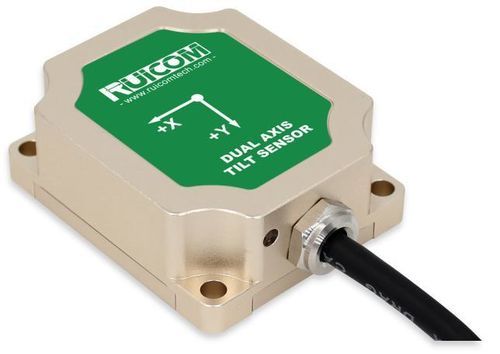

Triaxial tilt sensor STSL

XYZRS-485TTL

Product Introduction
The STSL is a compact, low-power, multi-parameter dual-axis inclinometer designed by RUICOM Technology for industrial field-control applications. It simultaneously measures tilt angle, oscillation frequency, oscillation amplitude and center offset, making it suitable for structural monitoring of towers, bridges and other industrial installations.

Key Features

• Tri-axial measurement (X, Y, Z)
• Measurement range ±30°
• Resolution 0.001°
• IP67 protection for outdoor/harsh environments
• Measurement accuracy: <±15°: 0.01° (RMS); <±30°: 0.05° (RMS)
• Low power consumption and fast start-up (2.5 s)
• Outputs: RS485 or TTL (optional); MODBUS RTU protocol
• Robust EMC performance (EN 61000 / GB/T 17626)

Performance Parameters

• Model: STSL
• Measurement range: ±30°
• Measurement axes: X, Y, Z (tri-axial)
• Resolution: 0.001°
• Measurement accuracy (@25°C): <±15°: 0.01° (RMS); <±30°: 0.05° (RMS)
• Long-term stability: <0.02°
• Zero-point temperature coefficient: 0.0008 °/°C (−40~85 °C)
• Sensitivity temperature coefficient: ≤0.01 %/°C (−40~85 °C)
• Oscillation frequency range: <12.5 Hz; accuracy: 0.20 Hz
• Dynamic amplitude & center offset: calculated from installation height and Z-axis angle
• Response time: <0.1 s; response frequency: >10 Hz
• Power-up startup time: 2.5 s
• Output signal: RS485/TTL optional; communication: MODBUS RTU
• Shock resistance: 100 g @ 11 ms, 3-axis (half-sine)
• Vibration resistance: 10 grms / 10–1000 Hz
• Insulation resistance: ≥100 MΩ
• Waterproof rating: IP67
• Cable: standard 2 m (4 × 0.2 mm²)
• Weight: ≤150 g (including 2 m cable)

Notes

• Resolution: smallest detectable change within the measurement range.
• Measurement accuracy: RMS error versus actual angle at room temperature.
• Long-term stability: deviation between max and min values over one year of continuous operation at room temperature.
• Response time: time for output to reach standard value after angle change.

Technical specifications

• Model: STSL
• Brand: RUICOM Technology
• Measurement range: ±30°
• Measurement axes: X, Y, Z
• Resolution: 0.001°
• Accuracy (@25°C): <±15°: 0.01° (RMS); <±30°: 0.05° (RMS)
• Long-term stability: <0.02°
• Temperature coefficients: zero-point 0.0008 °/°C; sensitivity ≤0.01 %/°C (−40~85 °C)
• Oscillation frequency: <12.5 Hz (accuracy 0.20 Hz)
• Start-up time: 2.5 s; response time: <0.1 s
• Output / Protocol: RS485 or TTL (optional) / MODBUS RTU
• EMC: compliant with EN 61000 and GB/T 17626
• Shock / Vibration: 100 g @11 ms; 10 grms 10–1000 Hz
• Ingress protection: IP67
• Cable: 2 m (4 × 0.2 mm²)
• Weight: ≤150 g (including cable)
