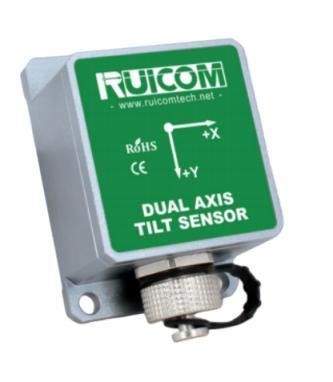

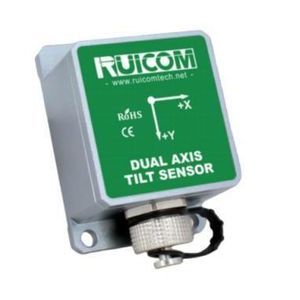

XY inclinometer NTS6-C1/C2/C3

2-axisCANCANopen

Product overview
The NTS6 is a digital miniature MEMS CANbus tilt sensor designed for industrial attitude monitoring. It uses a dual-channel gravity sensing unit to measure static gravitational acceleration and converts it into roll and pitch angles relative to the horizontal plane. The built-in MCU performs secondary linearity calibration to reduce accuracy loss typical of analog sensors. Outputs are available in CANopen, CAN2.0A and CAN2.0B.

Key features

• High resolution: 0.02°
• Standard DC 5V power supply
• Selectable outputs: CANopen / CAN2.0A / CAN2.0B
• Selectable measurement ranges: ±10°, ±30°, ±60°, ±90°
• Ingress protection: IP67

Performance parameters (excerpt)

• Measurement ranges: ±10° / ±30° / ±60° / ±90°
• Measurement axis: XY (roll and pitch)
• Resolution: 0.02°
• Measurement accuracy (@25°C): 0.1°
• Zero-point temperature coefficient (-40~85°C): ±0.02 °/°C
• Sensitivity temperature coefficient (-40~85°C): ≤150 ppm/°C
• Power-on startup time: 0.5 s
• Response frequency: 20 s
• Output rate (configurable): 5 Hz / 15 Hz / 35 Hz / 50 Hz
• Output signals: CANopen / CAN2.0A / CAN2.0B
• Electromagnetic compatibility: according to EN61000 and GBT17626
• Insulation resistance: ≥100 MΩ
• Shock resistance: 100 g @11 ms, triaxial (half-sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Waterproof rating: IP67
• Cable: standard 2 m shielded cable (weight ≤123 g)
• Weight: ≤112 g

Product dimensions
Refer to product images for dimensional diagram.

Technical specifications

• Model / Series: NTS6
• Measurement ranges available: ±10°, ±30°, ±60°, ±90°
• Measurement axis: XY (roll and pitch)
• Resolution: 0.02°
• Measurement accuracy (@25°C): 0.1°
• Zero-point temperature coefficient (-40~85°C): ±0.02 °/°C
• Sensitivity temperature coefficient (-40~85°C): ≤150 ppm/°C
• Power-on startup time: 0.5 s
• Response frequency: 20 s
• Output rate (configurable): 5 Hz / 15 Hz / 35 Hz / 50 Hz
• Output signals: CANopen, CAN2.0A, CAN2.0B
• Electromagnetic compatibility: according to EN61000 and GBT17626
• Insulation resistance: ≥100 MΩ
• Shock resistance: 100 g @11 ms, triaxial (half-sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Waterproof rating: IP67
• Cable: standard 2 m shielded cable (weight ≤123 g)
• Weight: ≤112 g
• Power supply: standard DC 5 V
