Single-axis tilt sensor HTS6

dual-axisCANhigh-precision

Product Overview

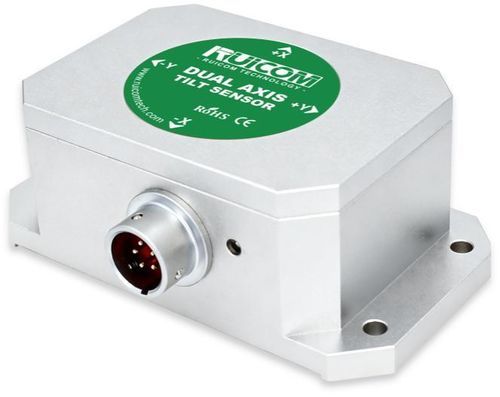

The HTS6 is a compact industrial tilt sensor (single- or dual-axis) providing CAN 2.0A output and sub-millidegree resolution. It integrates a high-precision 16-bit differential A/D converter with a fifth-order digital filter and an on-board temperature sensor for real-time temperature drift compensation. Default output rate is 50 Hz; higher or custom rates are available on request. The unit is designed for stable operation in demanding industrial environments and for applications requiring precise platform leveling and attitude reference.

Key Features

• Output interface: CAN 2.0A
• Resolution: 0.001°
• Selectable measuring ranges: ±1° to ±35°
• Single-axis or dual-axis configurations
• Wide supply: DC 9–36 V
• On-board temperature sensor for drift compensation (temperature output optional)
• Configurable output rates: 5 / 15 / 35 / 50 Hz (default 50 Hz)

Applications

• Industrial automation and process control
• Construction and engineering machinery platform leveling
• Photovoltaic tracker control systems
• Aerospace attitude reference and integration
• Precision instrument and machine leveling
• High-precision tilt measurement for platforms and related systems

Performance Parameters

• Measurement ranges (examples): ±10°, ±35° (custom selectable from ±1° to ±35°)
• Measurement axis: single-axis / dual-axis
• Resolution: 0.001°
• Measurement accuracy (@25°C): 0.005° (RMS) for smaller ranges, 0.01° (RMS) for larger ranges
• Long-term stability: 0.01° / 0.02° (depend on range)
• Zero-point temperature coefficient (-40 to 85°C): ±0.002°/°C
• Sensitivity temperature coefficient (-40 to 85°C): ≤50 ppm/°C
• Startup time: 0.5 s
• Device response frequency: 20 Hz (device), default output response typically 50 Hz
• Output rate (configurable): 5 / 15 / 35 / 50 Hz
• Output signal: CAN 2.0A
• EMC: compliant with EN61000 and GBT17626
• MTBF: ≥99,999 hours
• Insulation resistance: ≥100 MΩ
• Shock resistance: 100 g @11 ms, triaxial (half-sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Protection rating: IP67
• Wiring: standard 2 m shielded aviation connector cable (7P × 6.8 mm), abrasion-resistant, wide-temperature
• Weight: ≤250 g (excluding cable)

Notes on parameters

• Resolution: smallest angular change detectable within the effective measurement range.
• Measurement accuracy: evaluated at standard ambient temperature including linearity, repeatability, hysteresis, zero offset and cross-axis sensitivity.
• Zero-point temperature coefficient: change in output per °C at zero input over rated temperature range.
• Sensitivity temperature coefficient: change in full-scale output with temperature (stability index).
