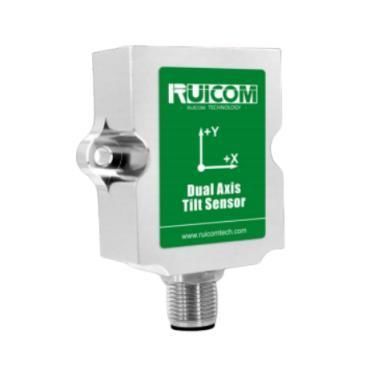

RS-485 tilt sensor LTS6

RS-232TTLcapacitive

Product overview
The LTS6 is a digital low-power tilt sensor using a high-precision capacitive MEMS element and a dedicated algorithm to provide real-time non-contact angle measurement. Designed on an anti-interference structural platform, it delivers wide operating temperature range, excellent vibration and shock tolerance, and long-term stability with an expected service life of up to 10 years. The unit is intended for industrial attitude monitoring in applications such as construction machinery, agricultural equipment and industrial vehicles.

Key features

• Six installation methods for flexible mounting
• On-site zero-point calibration
• Digital outputs: RS232, RS485, TTL
• High shock resistance >3500 g and strong vibration immunity

Technical specifications

• Model: LTS6
• Resolution: 0.1°
• Measurement accuracy (@25°C): ±0.2°
• Response time: 0.05 s
• Temperature drift (-40°C ~ +85°C): ±0.5°
• Output methods: RS232 / RS485 / TTL
• Output load: >500 Ω
• Insulation resistance: >100 MΩ
• Vibration resistance: 10 grms (10–1000 Hz); product spec also lists >3500 g shock resistance
• Shock resistance: 100 g @ 11 ms (triaxial, half-sine)
• MTBF / operating hours: 99,999 hours
• Dimensions: L64.5 × W50 × H18.5 mm
• Weight: ≤100 g

Applications & installation
The LTS6 supports direct surface mounting without additional mechanical shafts or complex fixtures. Multiple installation orientations are supported and the sensor can be fixed directly to the measured object. Typical applications include attitude monitoring, slope measurement and leveling control on engineering machinery, agricultural implements and other industrial equipment.

Integration notes
Choose the required digital interface (RS232/RS485/TTL) according to your system. Ensure output load >500 Ω and appropriate grounding/insulation to maintain the specified insulation resistance and long-term stability.
