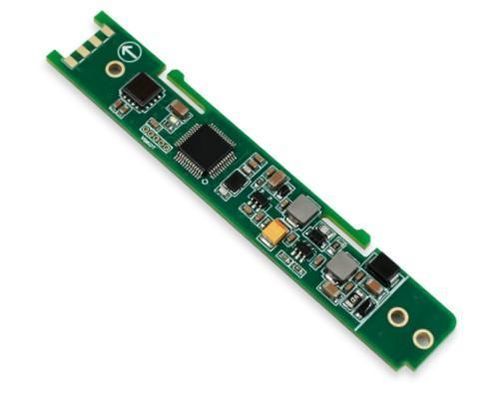

Dual-axis tilt sensor HTS3D

RS-485high-precision

Product introduction
The HTS3D is a dual-axis tilt sensor developed by RUICOM Technology for industrial engineering applications such as foundation pit tilt monitoring and bridge inspection. It maintains the HTS series stability while improving accuracy, temperature drift characteristics and long-term stability (controllable within 0.01°). A built-in 5th-order filter and biaxial gravity fusion algorithm compute roll and pitch. Each unit is calibrated on a multi-axis turntable to correct cross-axis errors and reduce mutual interference over large ranges.

Key features

• Dual-axis tilt measurement (X and Y)
• Measurement range ±85°
• Measurement accuracy 0.01° (@25°C)
• Resolution 0.001°
• Built-in 5th-order filtering and biaxial gravity fusion
• Factory turntable calibration for cross-axis correction
• RS485 output with integrated bus protection
• Multi-stage power regulation with overvoltage/overcurrent protection
• Designed for industrial environments with controlled long-term drift

Performance

• Measurement range: ±85°
• Measurement axes: Dual Axis (X, Y)
• Resolution: 0.001°
• Measurement accuracy (@25°C): 0.01°
• Long-term stability: 0.01°
• Zero-point temperature coefficient (-40–85°C): ±0.0002 °/°C
• Sensitivity temperature coefficient (-40–85°C): ≤50 ppm/°C
• Power-on startup time: 1 s
• Response bandwidth: 5 Hz
• Output signal: RS485
• Electromagnetic compatibility: According to EN61000 and GBT17626
• Insulation resistance: ≥100 megohms
• Shock resistance: 100 g @ 11 ms (three-axis, half sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Weight: ≤10 g (excluding cables)

Notes

• 1) Resolution: smallest identifiable angular change within the effective measurement range.
• 2) Measurement accuracy: evaluation at standard ambient temperature including linearity, repeatability, hysteresis, zero offset and cross-axis sensitivity.
• 3) Long-term stability: deviation between maximum and minimum outputs during one year of continuous room-temperature operation.
• 4) Zero-point temperature coefficient: change of zero offset per temperature change in the rated range relative to room temperature reference.
• 5) Sensitivity temperature coefficient: stability index of full-scale output with temperature variation in the rated range.

Product dimensions
Product dimension drawings and images are available on the product page.

Technical specifications

• Model: HTS3D
• Measurement range: ±85°
• Measurement axes: Dual Axis (X, Y)
• Resolution: 0.001°
• Measurement accuracy (@25°C): 0.01°
• Long-term stability: 0.01°
• Zero-point temperature coefficient (-40–85°C): ±0.0002 °/°C
• Sensitivity temperature coefficient (-40–85°C): ≤50 ppm/°C
• Power-on startup time: 1 s
• Response bandwidth: 5 Hz
• Output signal: RS485
• Electromagnetic compatibility: According to EN61000 and GBT17626
• Insulation resistance: ≥100 megohms
• Shock resistance: 100 g @ 11 ms (three-axis, half sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Weight: ≤10 g (excluding cables)
