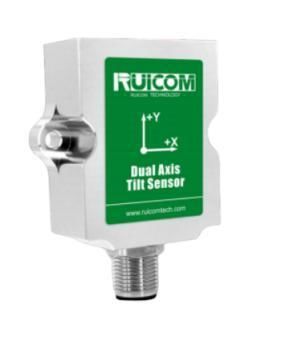

4-20 mA tilt sensor LTS6

current outputcapacitiveMEMS

Product Introduction
The LTS6 series current-output tilt sensor is an all-attitude angle measurement device developed for industrial applications. Based on a non-contact capacitive MEMS sensing unit and an anti-interference platform, the LTS6 offers wide temperature range tolerance and high resistance to vibration and shock. It calculates tilt angles in real time and is designed for long-term operation with a service life of up to 10 years. The sensor mounts directly to the measured surface without requiring rotary shafts, enabling flexible installation across multiple equipment types such as construction machinery, agricultural machines and automated industrial systems.

Key Features

• 4–20 mA current loop output
• Wide supply voltage: 9–36 V
• High vibration and shock resistance
• Designed working life up to 10 years

Performance parameters (table)
LTS6 | parameter
Output current: 4~20 mA
Resolution: 0.1°
Measurement accuracy (@25℃): ±0.2°
Response time: 0.05 s
Temperature drift (-40℃ ~ +85℃): ±0.5°
Output load: >500 ohms
Working hours: 99,999 hours/time (without failure)
Insulation resistance: >100 megaohms
Vibration resistance: 10 grms 10~1000 Hz
Impact resistance: 100 g @ 11 ms, triaxial (half-sine wave)
Size: L64.5 × W50 × H18.5 mm
Weight: ≤100 g

Applications

• Construction and engineering machinery
• Agricultural equipment
• Industrial automation systems

Technical specifications

• Model: LTS6
• Measurement principle: Non-contact capacitive MEMS tilt measurement
• Output: 4~20 mA current loop
• Supply voltage: 9 ~ 36 V
• Resolution: 0.1°
• Accuracy (@25℃): ±0.2°
• Temperature drift (-40℃ ~ +85℃): ±0.5°
• Response time: 0.05 s
• Output load: >500 ohms
• Vibration resistance: 10 grms (10~1000 Hz); peak resistance >3500 g
• Impact resistance: 100 g @ 11 ms (triaxial, half-sine)
• Insulation resistance: >100 MΩ
• Working life: designed for long-term operation (~99,999 hours without failure)
• Size: L64.5 × W50 × H18.5 mm
• Weight: ≤100 g
