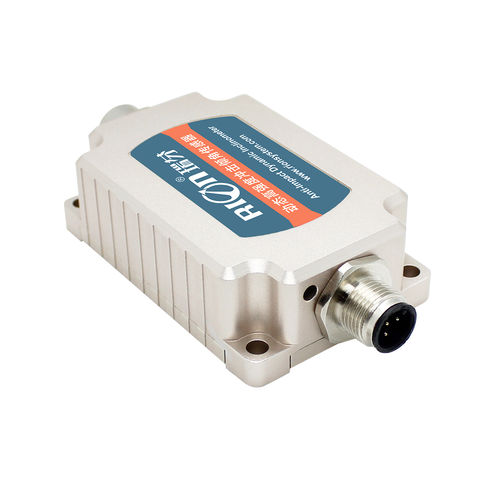

1-axis tilt sensor HDA536T2-axis3-axisCAN
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis, 2-axis, 3-axis
- Output
- CAN, CANopen, RS-485, RS-232, TTL
- Technology
- MEMS, electrolytic, capacitive
- Other characteristics
- rugged, high-precision, with aluminum housing, high-resolution, waterproof, miniature, for cranes, for dumpers, dynamic, with gyroscope, IP67, for condition monitoring, for the construction industry
- Inclination
Min.: 5 °
Max.: 180 °
60 °
- Resolution
0.01 °
Description
● MAIN FEATURES
★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)
★ Roll&Pitch Dynamic accuracy: ±0.1°
★ DC 9～36V wide voltage input
★ Wide temperature operation -40～+ 85 ℃
★ IP67 protection level
★ High anti-vibration performance> 2000g
★ Size: L72×W47×H22.5mm
● APPLICATION FIELD
★ Railway locomotive monitoring ★ Oil drilling equipment
★ Shield pipe jacking application ★ Geological equipment tilt monitoring
★ Underground drilling rig attitude navigation ★ Ship navigation attitude measurement ★ Satellite communication vehicle attitude detection ★ Shield pipe jacking application
● PRODUCT DESCRIPTION
HDA536T A new generation of digital MEMS dynamic tilt sensor. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.
HDA536T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / 232 / TTL are optional, and the scalability is strong.
VIDEO
Catalogs
HDA536T
25 Pages
HDA536T-CAN2.0A/B
17 Pages
