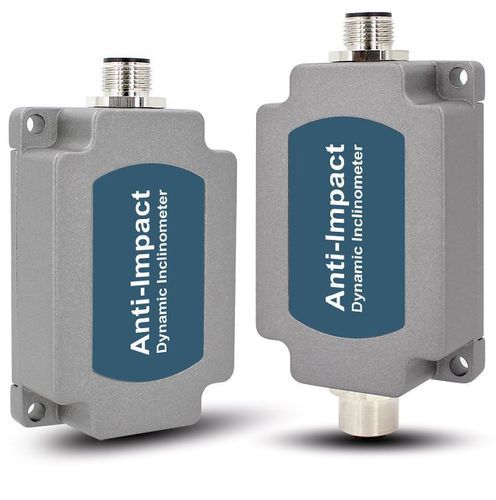

Multi-axis inclinometer HDA446

RS-485RS-232TTL

The DYNAMIC TILT SENSOR HDA446 is designed for precise measurement of roll, pitch, and azimuth angles, making it suitable for a wide range of industrial and scientific applications. This sensor offers high dynamic and static accuracy, as well as flexible output options for integration into various systems.

Key Features

• Range: Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°
• Roll & Pitch Dynamic accuracy: ±0.1°
• Static accuracy: ±0.05°
• RS485/232/TTL output options

Technical Specifications

• Product type: Dynamic tilt sensor
• Model: HDA446
• Measurement range: Roll ±180°, Pitch ±90°, Azimuth ±180°
• Dynamic accuracy (Roll & Pitch): ±0.1°
• Static accuracy: ±0.05°
• Output interfaces: RS485, RS232, TTL (optional)
