3-axis tilt sensor HDA436T-C1
CANMEMSelectrolytic

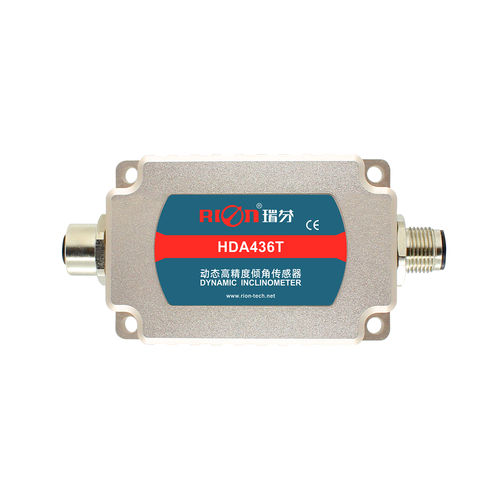

3-axis tilt sensor - HDA436T-C1 - SHENZHEN RION TECHNOLOGY CO.,LTD - CAN / MEMS / electrolytic
3-axis tilt sensor - HDA436T-C1 - SHENZHEN RION TECHNOLOGY CO.,LTD - CAN / MEMS / electrolytic
3-axis tilt sensor - HDA436T-C1 - SHENZHEN RION TECHNOLOGY CO.,LTD - CAN / MEMS / electrolytic - image - 2
3-axis tilt sensor - HDA436T-C1 - SHENZHEN RION TECHNOLOGY CO.,LTD - CAN / MEMS / electrolytic - image - 3
3-axis tilt sensor - HDA436T-C1 - SHENZHEN RION TECHNOLOGY CO.,LTD - CAN / MEMS / electrolytic - image - 4
3-axis tilt sensor - HDA436T-C1 - SHENZHEN RION TECHNOLOGY CO.,LTD - CAN / MEMS / electrolytic - image - 5
3-axis tilt sensor - HDA436T-C1 - SHENZHEN RION TECHNOLOGY CO.,LTD - CAN / MEMS / electrolytic - image - 6
3-axis tilt sensor - HDA436T-C1 - SHENZHEN RION TECHNOLOGY CO.,LTD - CAN / MEMS / electrolytic - image - 7
3-axis tilt sensor - HDA436T-C1 - SHENZHEN RION TECHNOLOGY CO.,LTD - CAN / MEMS / electrolytic - image - 8
Add to favorites
Compare this product
Go to the SHENZHEN RION TECHNOLOGY CO.,LTD website for more information

Characteristics

Number of axes
3-axis
Output
CAN
Technology
MEMS, electrolytic, capacitive
Other characteristics
with aluminum housing, high-precision, rugged, high-resolution, waterproof, for the construction industry, for dumpers, miniature, dynamic, with gyroscope, IP67, for angle measurement, OEM, for cranes
Inclination

Min.: -180 °

180 °

Max.: 180 °

Resolution

0.01 °

Description

MAIN FEATURES ★ Range (biaxial ±90°) ★ Dynamic accuracy: ± 0.1 ° ★ Roll&Pitch Static accuracy: ±0.05 ° ★ CANOpen communication protocol ★ DC 9 ~ 36 V wide voltage input ★ Wide temperature working -40 ~ + 85 ℃ ★ IP67/IP68 protection grade optional APPLICATION FIELD ★ High vibration impact crushing equipment ★ Satellite antenna star search ★ Railway locomotive monitoring ★ Oil drilling equipment ★ Underground drilling rig attitude navigation ★ Geological equipment tilt monitoring ★ Ship navigation attitude measurement ★ Shield pipe jacking application ★ Satellite communication vehicle attitude detection ● PRODUCT INTRODUCTION HDA436T-C1 product is a new generation of digital MEMS dynamic tilt sensor , which can measure the attitude parameters (dual-axis tilt) of the moving carrier and is suitable for tilt measurement in the state of motion or vibration. The HDA436T-C1 has built-in acceleration and gyro sensors and incorporates a Kalman filtering algorithm to measure real-time motion data of the carrier in motion or vibration. CANOPEN communication protocol is widely used.
