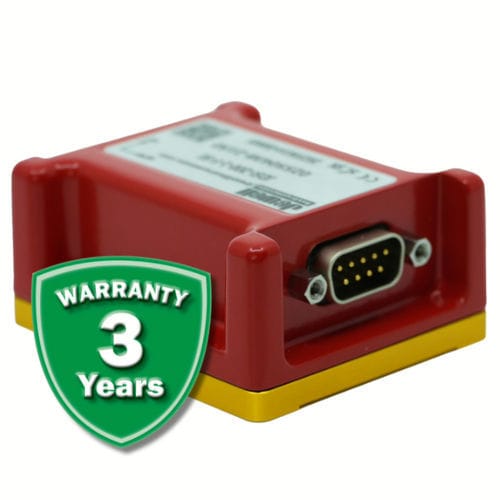

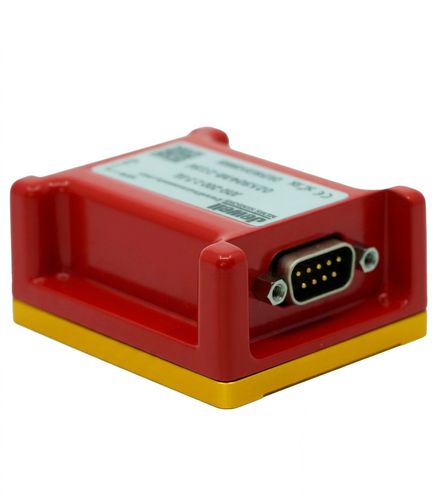

2-axis inclinometer JDHI-100/200

digitalRS-485RS-232

The NEW Ruby MEMS digital inclinometers represent the next generation of high-performance inertial sensors from Jewell Instruments. With an improved Price-Performance, the new Ruby inertial sensors offer outstanding resolution, frequency response, and bandwidth — all in an IP67 package that utilizes the same mounting configuration of Jewell’s current MEMS sensors. - Dimensions: 2.25 × 2.25 × 1.99 in - Ranges: ±1° to ±90° - Temperature Compensated - Digital Interface Options: ASCII (RS-485/RS-232) and Modbus (RS-485) - High-Precision with 0.0001° resolution - Operating Temp Range: -40° to +85°C - Seal: IP67 - M12 and DB9 termination options - CE and RoHS compliant Applications: - Radar & Antenna Position Control - Mining - Bridge and Structural Monitoring - Platform Leveling - Tunneling Biaxial Machine Tool Levelling - Construction - Offshore Platform Stability - Production/Manufacturing Process - Geotechnical Monitoring - Industrial Measurement & Control Performance Specifications: - Measurement Range (°): ±1, ±3, ±14.5, ±30, ±60, ±90 - Digital Resolution (°, max): 0.0001 - Repeatability (°): 0.01 - Transverse Axis Misalignment (° max): ±0.25 - Bandwidth (Hz nom) (-3 dB): (Sample Rate) / 4 - Accuracy - Temp Sensor (°C, max): ±2 Electrical/Protocol: - Number of Axes: 1 or 2 - Input Voltage Range (VDC): 5 min, 9 to 36 typ, 38 max, reverse wiring protected - Power- RS-485 Termination Enabled (mW, max): 800.0 - Power- RS-485 Termination Disabled (mW, max): 600.0 - Galvanic Isolation – Power Inputs (rms): 2000 - Protocol: ASCII (RS-485); ASCII (RS-232); MODBUS-RTU - Baud (bps): 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 500000 (max) - Communication Settings: 8 bits, 1 stop bit, even | odd - Data Sample Rate (Hz): 3.9, 7.8, 15.6, 31.2, 62.5, 125 - Node ID: 0+last 2 digits of serial number - Filtering: User selectable - Bus Termination – Internal (120Ω): On/Off Environment/Mechanical: - Operating Temperature Range: -40° to +85 °C - Storage Temperature Range: -55° to +105 °C - Shock: 100 g, 0.011 sec, ½ sine - Seal: IP67 (when mated to IP67 connector)
