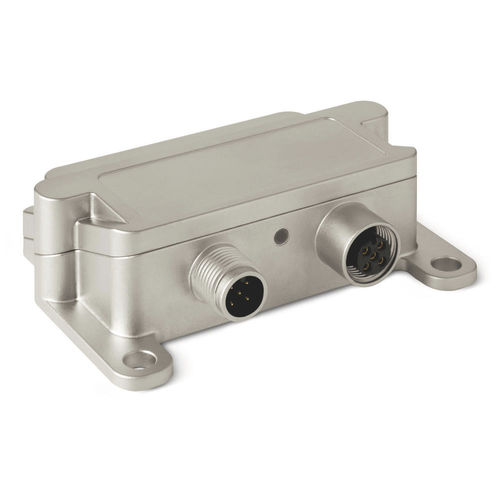

Multi-axis inclinometer IMS365

CANopenMEMSinertial

The robust inclinometer IMS365 enables new applications in dynamic applications thanks to the integrated acceleration sensor and gyroscope. Thanks to the innovative sensor-fusion algorithm, external accelerations such as vibrations and shocks are compensated and consequently reliable inclination values are provided. In addition to the 360° inclination measurement in all three spatial axes, the Euler angle, such as pitch & roll, is measured. Its high degree of protection, robust housing and E1 approval (UN ECE R10) make it ideally suited for use in commercial vehicles. 6 Axis Inertial Measurement Unit (IMU) Compensation of external acceleration thanks to innovative sensor fusion Freely configurable installation position and axis alignment Euler angle measurement (pitch & roll) High protection category and robustness E1 Approval by the German Federal Office for Motor Vehicles With PURE.MOBILE technology
