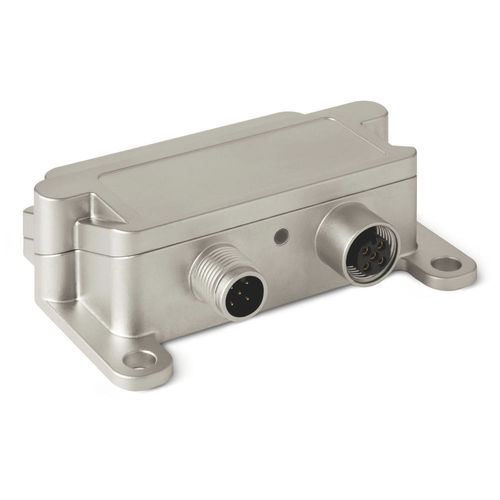

Multi-axis inclinometer IMS365R

CANopenMEMSinertial

ertified according to SIL2 and PLd, the inclinometer IMS365R provides reliable and safe inclination values even in safety-critical applications. The sensor is ideally suited for dynamic applications thanks to the integrated acceleration sensor and gyroscope, . Thanks to the innovative sensor-fusion algorithm, external accelerations such as vibrations and shocks are compensated and consequently reliable inclination values are provided. In addition to the 360° inclination measurement in all three spatial axes, the Euler angle, such as pitch & roll, is measured. Its high degree of protection, robust housing and E1 approval (UN ECE R10) make it ideally suited for use in commercial vehicles. 6 Axis Inertial Measurement Unit (IMU) SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation) Compensation of external acceleration thanks to innovative sensor fusion Freely configurable installation position and axis alignment Euler angle measurement (pitch & roll) E1 Approval by the German Federal Office for Motor Vehicles With PURE.MOBILE technology
