redundant Safety inclination sensor
open expert video

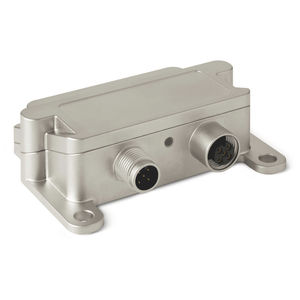

The inclination sensor IKM360R is a redundant safety inclination sensor, which has been specially developed for use in mobile machines. It can be used in safety-critical applications – up to performance level PLd. Thanks to its particularly robust design, an optionally redundant CANopen or CANopen Safety interface, it is ideally suited for tough conditions in mobile machines.
Profile IKM360R:
Resolution of 0.001°
Accuracy ±0.8°, over the entire measuring and temperature ranges
Suitable for applications up to Performance Level PLd
IP6K9K, IP67 protection category
temperature-compensated from -40° C … +85° C
With PURE.MOBILE technology
Mechanical data
Feature - Technical data - Additional information
Housing - plastic/stainless Steel -
Mounting type - 3-point mounting -
Weight - '•0.149 kg -
Electrical data - -
Feature - Technical data - Additional information
Operating voltage - 8... 36VDC - reverse-polarity protected
Current consumption - £100 mA - without load
Status display - 2x two-color LEDs (red/green) - Device status/CAN status
Power rating - ±36 V - CAN interface
Température drift - £ £0.02 7K -
- typical 0.008 7K -
Interface - according to ISO 11898-1/2, not electrically isolated - CANopen, CiA 301, CiA 303 Part 3, CiA 305, CiA 410
- according to ISO 11898-1/2, not electrically isolated - CANopen Safety, CiA 301, CiA 303
