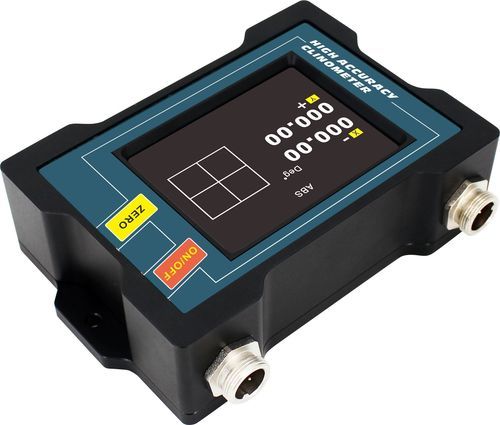

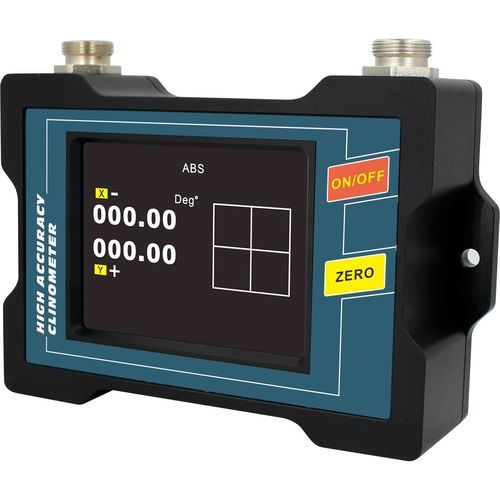

Multi-axis inclinometer SMI815/825

RS-485portablewith digital display

Product Overview

The SMI815/825 inclinometer monitor by RION accepts input from inclinometers, accelerometers, compasses and gyroscopes to receive, transmit and display attitude data. It features a 2.8" industrial wide-temperature color display with PC membrane buttons, selectable sensor zero setting, third-party sensor support and customizable function keys and panel color. Powered by DC 9~36V, it supports long-distance RS485 transmission, has an anodized aluminum all-metal enclosure, is portable and easy to install for real-time monitoring in harsh industrial environments.

Key Specifications

• Measurement: inclinometer data acquisition
• Transmission: RS485 (up to 500 m)
• Display: 2.8" color, 64-color display area
• Resolution: 0.01° (standard) / 0.001° (high-precision)
• Power input: DC 9~36V wide-range
• Operating temperature: -25 to +80 °C
• Connector: aviation head plug
• Enclosure: anodized aluminum
• Mounting: two M4 screws

Applications

• Four-wheel vehicle alignment and testing
• Building and construction monitoring
• Mechanical and equipment installation
• Piping and pipeline alignment
• Medical instrument leveling
• Road and slope measurement

Function description

• Inclinometer input: connect inclinometer; choose resolution 0.01° or 0.001°
• Metal housing: anodized aluminum for durability
• External power interface: DC 9~36V wide-range input
• 64-color display: main data visualization area
• Power on/off button for device control
• Mounting holes: two M4 screws for easy installation
• Zero/clear button: audible confirmation and toggle between ABS (absolute) and REL (relative) zero modes

Dimensions

• Housing size: L117 × W77 × H32 mm
• Installation cutout: L107 × H5 mm
• Mounting screws: 2 × M4

Technical specifications

• Model family: SMI series (SMI815/825)
• Display: 2.8" color, 64-color data area
• Resolution options: 0.01° or 0.001°
• Data transmission: RS485 (up to 500 m)
• Power supply: DC 9~36V
• Operating temperature: -25 °C to +80 °C
• Enclosure material: anodized aluminum
• Connector: aviation head plug
• Mounting: two M4 holes
• Dimensions (housing): 117 × 77 × 32 mm
