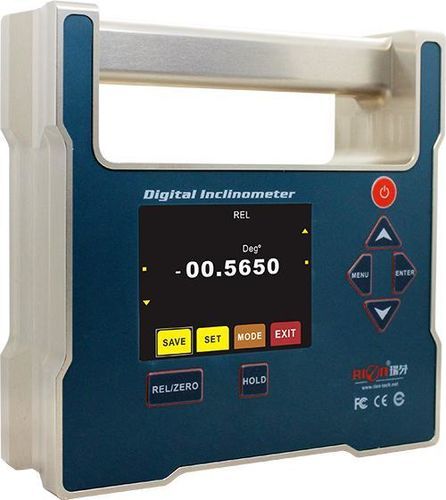

Single-axis inclinometer DMI850

digitalclosed-loop gravitywith integrated data logger

Product description
The DMI850 is a single-axis digital inclinometer developed by RION for high-precision angle measurement. It uses a quartz pendulum gravity sensing element combined with a 32-bit microprocessor and 32-bit ADC for fine subdivision sampling. The instrument provides extremely high resolution (0.0005°) and meets demanding accuracy requirements for precision platform leveling and alignment tasks in medical and industrial environments.

Scope of application

• Medical device angle leveling
• Machine platform angle leveling
• Lifting table angle leveling

Key features

• Typical accuracy: <0.002° (<5°), <0.003° (5°–30°) (RMS)
• Angular resolution: 0.0005°
• Protection class: IP54
• Measurement range: ±30°
• Onboard data storage and playback
• Absolute and relative measurement modes
• User-adjustable zero calibration

Parameter

• Model: DMI850
• Measurement range: ±30 °
• Measuring axis: Single-axis
• Best accuracy: <0.002° (<5°)、<0.003° (5°–30°) (RMS)
• Resolution: 0.0005 °
• Measurement mode: Degree or mm/m selectable
• LCD: 64-color true-color luminous display
• LCD visible size: L60 × W45 mm
• Operating temperature: -10° to +70° C
• Working humidity: 85 % RH
• Power supply: 2 × AA (No.5) batteries
• Battery continuous working time: ~6 h
• Anti-vibration: 10 g @ 11 ms, triaxial (half sine)
• Impact resistance: 10 grms, 10–100 Hz
• Weight: 1200 g
• Protection class: IP54
• Material: Anodized aluminum alloy
• Size: L140 × W140 × H45 mm

Dimensions

• Shell size: L140 × W140 × H45 mm
• Installation method: Two-sided strong magnetic adsorption

Technical specifications

• Model: DMI850
• Type: Single-axis digital inclinometer
• Measurement range: ±30°
• Accuracy (RMS): <0.002° (<5°), <0.003° (5°–30°)
• Resolution: 0.0005°
• Display: 64-color luminous LCD (visible L60 × W45 mm)
• Operating temperature: -10° to +70° C
• Working humidity: 85% RH
• Power: 2 × AA batteries (~6 h)
• Anti-vibration: 10 g @ 11 ms, triaxial
• Impact resistance: 10 grms, 10–100 Hz
• Weight: 1200 g
• Protection: IP54
• Material: Anodized aluminum alloy
• Dimensions: L140 × W140 × H45 mm
