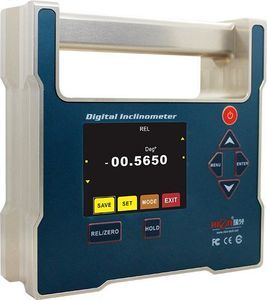

Single-axis inclinometer DMI810

digitalwith touchscreenIP54

▶ FEATURES
Measured accuracy: < 0.005 °
Angle resolution: 0.001 °
Filter frequency optional
Measurement range: ± 30°
Absolute/relative measurement can be switched
With data storage function
Automatic angle interleaving compensation function
Fixed installation can be measured
Working temperature -10℃~ + 70℃
Angle/length double unit switching
Night vision four-color screen
Customers can calibrate the zero point by themselves
Alarm angle can be set
3 measurement modes (angle, degree, minute and second, mm/m)

▶ APPLICATION
Building construction
Production fixture
Vehicle four-wheel detection
Mechanical installation
Pipeline installation
Industrial platform
PTZ angle detection
Turntable detection
Medical instrument
Road slope


General Description
DMI810/DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy
