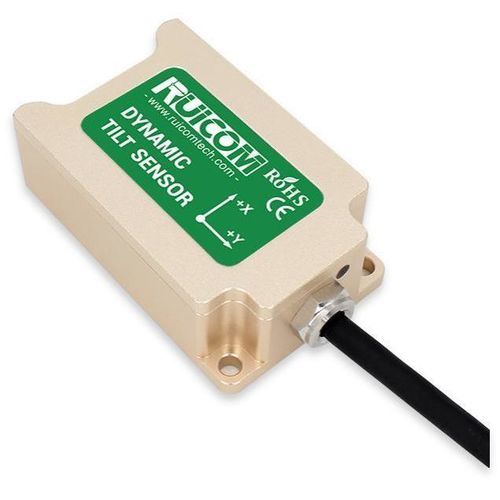

2-axis tilt sensor DTS6-A1

XY4-20 mAcurrent output

Product overview
The DTS6-A1 is an industrial dynamic tilt sensor providing 4–20 mA current-loop output for reliable dynamic angle monitoring in harsh environments. It integrates a 3-axis accelerometer and 3-axis gyroscope and uses a 6-axis Kalman filter to compute dual-axis dynamic attitude in real time. The 4–20 mA output offers strong interference immunity and supports long-distance transmission up to 2000 m, making the DTS6-A1 suitable for engineering machinery and other industrial applications.

Key features

• Selectable measuring ranges: ±1° to ±90° (table includes ±10/±30/±60/±90/±180° options)
• Output: 4–20 mA current loop, 0° = 12 mA
• Dual-axis dynamic attitude measurement (X, Y)
• Integrated MEMS 3-axis accelerometer + 3-axis gyroscope
• Built-in six-axis Kalman filter for real-time dynamic angle calculation
• Long-distance transmission up to 2000 m
• Industrial-grade MCU, conformal-coated PCB, metal housing
• Shock resistant 100g@11ms (triaxial) and vibration resistant 10grms (10–1000 Hz)
• EMC and RF interference suppression, IP67 protection

Performance parameters
Measuring ranges: ±1°~±90° selectable (table lists ±10, ±30, ±60, ±90, ±180°)
Measurement axis: X, Y (most ranges); X for ±180°
Zero output (0°): 12 mA (all ranges)
Resolution: 0.01° (±10, ±30); 0.02° (±60); 0.03° (±90); 0.05° (±180)
Dynamic accuracy (@25°C): ±0.3° (±10/±30/±60); ±0.5° (±90/±180)
Static accuracy (@25°C): 0.05° (±10/±30); 0.06° (±60); 0.08° (±90); 0.1° (±180)
Long-term stability: 0.05° (all ranges)
Zero temp. coefficient (-40~85°C): ±0.006 °/°C
Sensitivity temp. coefficient (-40~85°C): ≤100 ppm/°C
Power-on startup time: 1.0 s
Response time: 0.01 s
Response frequency: 20–100 Hz
EMC: compliant with EN61000 and GBT17626
Insulation resistance: ≥100 MΩ
Shock resistance: 100g@11ms, triaxial (half-sine)
Vibration resistance: 10grms, 10–1000 Hz
Waterproof rating: IP67
Cable: standard 2 m shielded cable
Weight: ≤180 g (excluding cable)

Technical specifications

• Model: DTS6-A1
• Output: 4–20 mA current loop
• Measuring ranges: ±1°~±90° selectable (table options include ±10/±30/±60/±90/±180°)
• Measurement axes: dual-axis dynamic attitude (X, Y)
• Core sensing element: MEMS 3-axis accelerometer + 3-axis gyroscope
• Algorithm: built-in six-axis Kalman filter
• Maximum cable transmission distance: 2000 m
• Static accuracy: down to 0.03° for small ranges; typical 0.05° (@25°C)
• Dynamic accuracy: typical ±0.3° (@25°C)
• Shock resistance: 100g@11ms (triaxial, half-sine)
• Vibration resistance: 10grms, 10–1000 Hz
• EMC: EN61000 and GBT17626 compliant
• Protection rating: IP67
• Temperature reference: -40~85°C
• Standard cable: 2 m shielded
• Weight: ≤180 g (excluding cable)
