2-axis tilt sensor DTS6-V1

analogvoltage output0-5 V

Product Overview

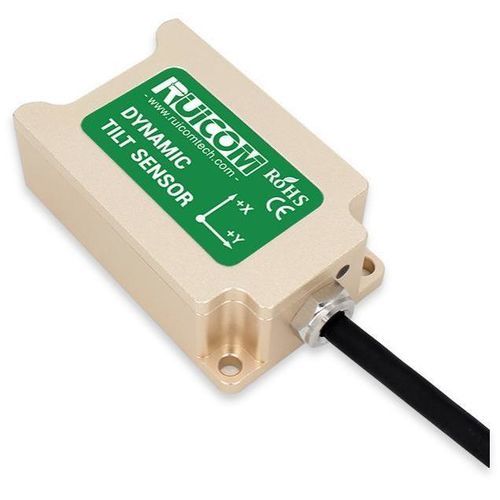

The DTS6-V1 is a voltage-output dynamic tilt sensor providing simultaneous dynamic roll and pitch measurements across two axes. It delivers analog voltage signals (0–5 V DC) proportional to attitude angles so users can determine an object's current roll and pitch. The device integrates a MEMS three-axis accelerometer and a three-axis gyroscope and uses an internal six-axis Kalman filter to fuse gravitational and angular-rate data, computing real-time dynamic attitude angles and outputting them as analog voltages. Its non-contact measurement principle enables continuous real-time tilt output without strict alignment or reliance on a reference mounting surface. The compact MEMS-based design ensures high measurement resolution, strong EMI immunity, and robust performance under shock and vibration, making the sensor suitable for industrial equipment and platform attitude measurement.

Key Features

• Selectable measurement ranges: ±10°, ±30°, ±60°, ±90°, ±180°
• Dynamic accuracy typically ±0.3° (range-dependent)
• Static accuracy down to ±0.05° (range-dependent)
• Analog output 0–5 V with 2.5 V at 0°
• Response time 0.01 s, response frequency 20–100 Hz
• Ingress protection IP67 and standard 2 m shielded cable

Performance Parameters (summary)
Range: ±10° | ±30° | ±60° | ±90° | ±180°
Measurement axis: X/XY | X/XY | X/XY | X/XY | X
Zero output (0°): 2.5 V (all ranges)
Resolution: 0.01° | 0.01° | 0.02° | 0.03° | 0.05°
Dynamic accuracy (@25°C): 0.3° | 0.3° | 0.3° | 0.5° | 0.5°
Static accuracy (@25°C): 0.05° | 0.05° | 0.06° | 0.08° | 0.10°
Long-term stability: 0.05° (all ranges)
Zero temperature coefficient (-40~85°C): ±0.006 °/°C (all ranges)
Sensitivity temperature coefficient (-40~85°C): ≤100 ppm/°C (all ranges)
Power-on startup time: 1.0 s (all ranges)
Response time: 0.01 s (all ranges)
Response frequency: 20–100 Hz (all ranges)
EMC: compliant with EN61000 and GBT17626
Insulation resistance: ≥100 MΩ
Shock resistance: 100 g @ 11 ms, triaxial (half-sine)
Vibration resistance: 10 grms, 10–1000 Hz
Waterproof rating: IP67
Cable: Standard 2 m shielded cable
Weight: ≤180 g (excluding cable)

Product Dimensions
Refer to the product dimensions drawing for mechanical size and mounting details.

Technical Specifications

• Model: DTS6-V1
• Output mode: 0–5 V analog voltage
• Selectable measurement ranges: ±10°, ±30°, ±60°, ±90°, ±180°
• Measurement axis: X or XY depending on range
• Zero output (0°): 2.5 V
• Resolution: down to 0.01° (model-dependent)
• Dynamic accuracy: typically ±0.3° (range-dependent)
• Static accuracy: down to ±0.05° (range-dependent)
• Long-term stability: 0.05°
• Zero temperature coefficient: ±0.006 °/°C (-40~85°C)
• Sensitivity temperature coefficient: ≤100 ppm/°C (-40~85°C)
• Startup time: 1.0 s
• Response time: 0.01 s
• Response frequency: 20–100 Hz
• EMC: compliant with EN61000 and GBT17626
• Insulation resistance: ≥100 MΩ
• Shock resistance: 100 g @ 11 ms, triaxial (half-sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Ingress protection: IP67
• Standard cable: 2 m shielded cable
• Weight: ≤180 g (excluding cable)
