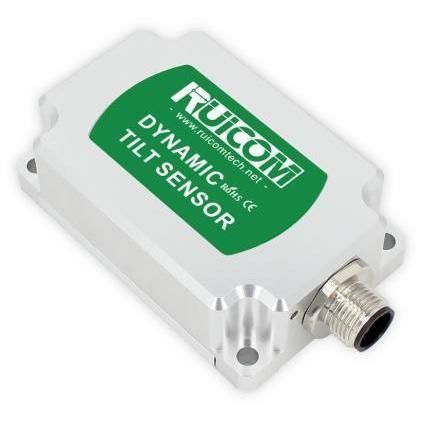

3-axis tilt sensor DTS

XYZRS-485RS-232

Product Overview
DTS is a high-performance digital MEMS dynamic tilt sensor developed by RUICOM Technology for attitude monitoring of moving platforms. It outputs real-time three-dimensional attitude data (roll, pitch, yaw) under vibration and motion by fusing a three-axis accelerometer and gyroscope with an adaptive Kalman filter. Multiple digital interfaces (RS485, RS232, TTL) facilitate system integration in industrial applications.

Measurement Principle and Robustness
Based on a non-contact measurement principle, DTS computes attitude without a reference mounting surface. The built-in high-precision ADC and gyroscope compensation correct nonlinear errors, orthogonal coupling, temperature drift and centrifugal effects, reducing motion-induced measurement deviations. DTS operates in dynamic and static modes, offers strong EMI immunity, and resists high mechanical shock and vibration for deployment in harsh environments such as industrial automation, construction machinery and rail transport.

Key Features

• Dynamic accuracy ±0.1°
• Static accuracy ±0.05°
• Interfaces: RS485 / RS232 / TTL (optional)
• Measuring range: Roll ±180°, Pitch ±90°

Performance Parameters (table)
DTS | Parameter
Measurement Range | Roll ±180°, Pitch ±90°, Azimuth ±180°
Measurement Axis | X-axis / Y-axis / Z-axis
Roll and Pitch Resolution | 0.01°
Roll and Pitch Static Accuracy @25℃ | ±0.05°
Roll and Pitch Dynamic Accuracy (rms) @25℃ | ±0.1°
Gyroscope - Range | ±300°/s
Gyroscope - Oblique Stability (10s Mean) | 8.5°/h
Gyroscope - Oblique Instability (Allan) | 4.5°/h
Gyroscope - Angle Random Walk (Allan) | 0.25°/sqrt(h)
Accelerometer - Range | ±4g / ±16g (optional)
Accelerometer - Oblique Stability (10s Mean) | 0.02 mg
Accelerometer - Oblique Instability (Allan) | 0.005 mg
Acceleration - Velocity Random Walk (Allan) | 0.005 m/s/sqrt(h)
Zero-point temperature coefficient @-40–85℃ | ±0.01°/℃
Sensitivity temperature coefficient @-40–85℃ | ≤100 ppm/℃
Power-on startup time | ≤3.5 s
Response time | 0.01 s
Communication protocol | RS485 / RS232 / TTL (optional)
Electromagnetic compatibility | According to EN61000 and GBT17626
MTBF | ≥98,000 hours
Insulation resistance | ≥100 MΩ
Shock resistance | 100g @ 11 ms, triaxial (half-sine)
Vibration resistance | 10 grms, 10–1000 Hz
Protection class | IP67 / IP68 (optional)
Weight | Single connector ≤165 g (excl. cable); Dual connector ≤180 g (excl. cable)

Technical specifications

• Model / Series: DTS
• Measurement ranges: Roll ±180°, Pitch ±90°, Azimuth ±180°
• Measurement axes: X, Y, Z
• Resolution (Roll & Pitch): 0.01°
• Static accuracy @25℃: ±0.05°
• Dynamic accuracy (rms) @25℃: ±0.1°
• Gyroscope range: ±300°/s
• Gyroscope oblique stability (10s mean): 8.5°/h
• Gyroscope oblique instability (Allan): 4.5°/h
• Angle Random Walk (Allan): 0.25°/sqrt(h)
• Accelerometer range: ±4g or ±16g (optional)
• Accelerometer oblique stability: 0.02 mg
• Accelerometer oblique instability: 0.005 mg
• Velocity Random Walk: 0.005 m/s/sqrt(h)
• Zero-point tempcoefficient (-40–85℃): ±0.01°/℃
• Sensitivity tempcoefficient (-40–85℃): ≤100 ppm/℃
• Power-on startup time: ≤3.5 s
• Response time: 0.01 s
• Communication: RS485 / RS232 / TTL (optional)
• EMC: conforms to EN61000 and GBT17626
• MTBF: ≥98,000 hours
• Insulation resistance: ≥100 MΩ
• Shock resistance: 100g @ 11 ms (triaxial, half-sine)
• Vibration resistance: 10 grms, 10–1000 Hz
• Protection: IP67 (standard) / IP68 (optional)
• Weight: Single connector ≤165 g (excl. cable); Dual connector ≤180 g (excl. cable)
