2-axis tilt sensor WDS826FL

RS-485RS-232Modbus

Product Introduction

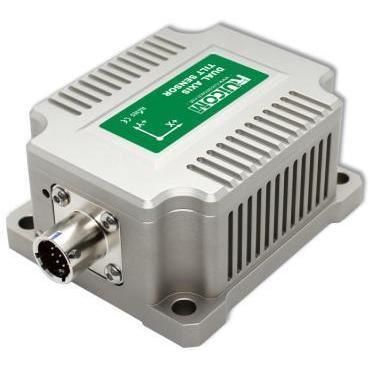

The WDS826FL is a dynamic dual‑axis tilt sensor engineered for monitoring tower motion and low‑frequency vibrations of wind turbines. It features high low‑frequency sensitivity and stability across wide temperature ranges, enabling accurate capture of slowly varying tilt signals in long‑term field deployments. Factory calibration and long‑term stability verification are performed to ensure consistent performance under varying environmental conditions.

Key Features

• Dual‑axis inclination measurement (X, Y)
• Measurement range ±10° with 0.0005° resolution
• Good low‑frequency response for slowly changing signals
• Output interfaces: RS485 / RS232 / RS422 (optional); supports MODBUS
• Non‑contact installation with screw mounting and automatic horizontal angle calculation
• IP67 protection, high shock and vibration resistance

Performance Parameters

• Model: WDS826FL
• Measurement range: ±10°
• Axes: X, Y (dual axis)
• Resolution: 0.0005°
• Accuracy (room temperature): 0.05°
• Zero temperature coefficient: 0.0003 °/°C (operating −40 to 85 °C)
• Sensitivity temperature coefficient: ≤50 ppm/°C (operating −40 to 85 °C)
• Response frequency: 20 Hz
• Output rate (configurable): 5 / 10 / 25 / 35 / 50 / 100 Hz
• Output signal: RS485 / RS232 / RS422 (optional); MODBUS support
• EMC: compliant with EN61000 and GBT17626
• MTBF: ≥98,000 hours
• Insulation resistance: ≥100 MΩ
• Shock resistance: 100 g @ 11 ms, 3 axial (half‑sinusoid)
• Vibration resistance: 10 grms, 10–1000 Hz
• Protection grade: IP67
• Cable: standard 1 m shielded aviation connector, wide‑temperature, wear‑resistant
• Weight: ≤450 g (excluding cable)

Product Dimensions
Refer to the manufacturer's drawings provided on the product page for detailed dimensions and mounting recommendations.

Technical specifications / Notes

• Resolution: smallest detectable change within the measurement range
• Accuracy: measured across multiple angle points within the range at room temperature
• Zero‑point temperature coefficient: change in zero reading relative to room temperature over the rated range
• Sensitivity temperature coefficient: change in full‑scale reading relative to room temperature, expressed in ppm/°C
