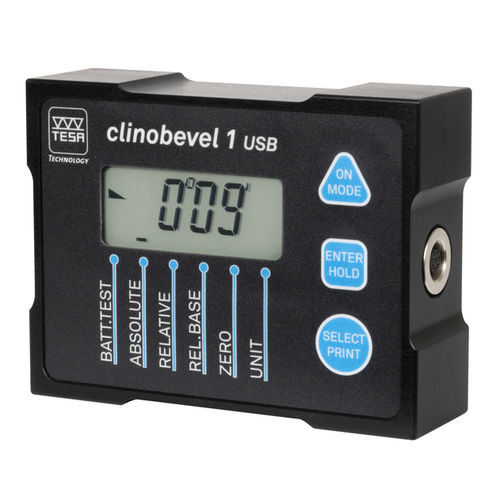

Multi-axis inclinometer CLINOBEVEL 1 series
RS-485USBwith LCD display

Multi-axis inclinometer - CLINOBEVEL 1 series - TESA Technology - RS-485 / USB / with LCD display
Multi-axis inclinometer - CLINOBEVEL 1 series - TESA Technology - RS-485 / USB / with LCD display
Multi-axis inclinometer - CLINOBEVEL 1 series - TESA Technology - RS-485 / USB / with LCD display - image - 2
Multi-axis inclinometer - CLINOBEVEL 1 series - TESA Technology - RS-485 / USB / with LCD display - image - 3
Multi-axis inclinometer - CLINOBEVEL 1 series - TESA Technology - RS-485 / USB / with LCD display - image - 4
Multi-axis inclinometer - CLINOBEVEL 1 series - TESA Technology - RS-485 / USB / with LCD display - image - 5
Add to favorites
Compare this product
Go to the TESA Technology website for more information

Characteristics

Number of axes
multi-axis
Output
RS-485, USB
Other characteristics
with LCD display, IP65

Description

Units - DEG, mm/m, „/10“, „/12“, mRad, DEG/min, min/sec, mm/REL, „/REL, A%o, GON Standard - DIN 2276 Max. perm. errors - 2' + 1 digit Resolution - 0,025 mm/m Material - Aluminium anodised Dimensions - 100 x 75 x 35 mm Measuring face(s) - 4 flat measuring faces Weight - 520 g Power supply - 1 battery type LRC 6, AA, 1,5 V Autonomy - ≈ 150 hours
